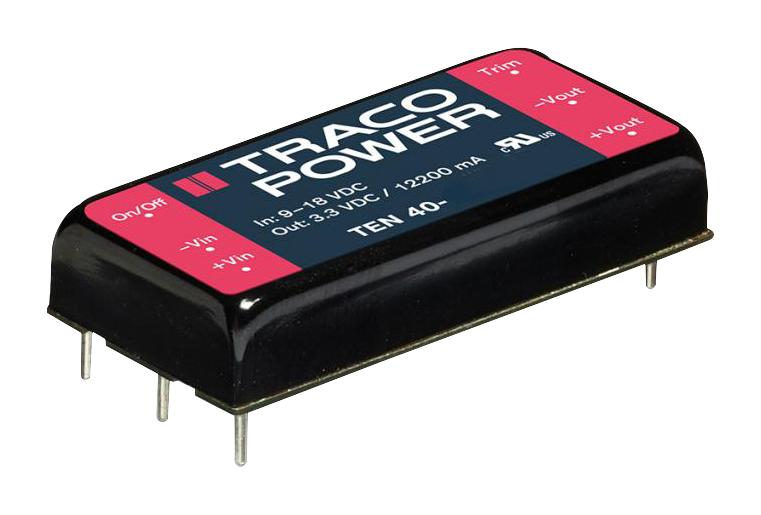

TRACO POWER TEN402425E Industrial Power Converter
The TEN 40E series is a 40 Watt DC/DC converter designed for industrial applications, offering high efficiency up to 93%, wide input voltage ranges from 9V to 75V, and an operating temperature range from -40°C to +85°C. It features remote on/off, overcurrent, overvoltage, and overtemperature protection, along with 1600 VDC I/O isolation. The rugged 2x1 inch metal package includes a shielded case for enhanced durability. Certified according to IEC/EN/UL 62368-1 standards, this converter ensures reliable power supply with excellent thermal performance, suitable for demanding environments.
TRACO POWER TEN402425E Industrial Power Converter Specifications:
- Input Voltage Range: 9-18 VDC, 18-36 VDC, 36-75 VDC
- Output Power: 40 Watts
- Efficiency: up to 93%
- Operating Temperature Range: -40°C to +85°C
- Protection: Short circuit, overvoltage, overtemperature
- Isolation Voltage: 1600 VDC I/O-isolation
- Package: 2 inch x 1 inch metal case with 6-side shielding
- Remote On/Off: Yes
- Input Surge Voltage: 25 VDC (12V), 50 VDC (24V), 100 VDC (48V)
- Input Current (no load): 20 mA (12V), 15 mA (24V), 10 mA (48V)
- Input Voltage Lockout: 7-8.8 V (12V), 15-17.5 V (24V), 32-35 V (48V)
- Start-up Time: 30 ms typical
- Ripple and Noise (single output 24V): 150 mVp-p
- MTBF: 1,245,000 hours (MIL-HDBK-217F, ground benign)
- Shock & Vibration: MIL-STD-810F compliant
- Housing Material: Copper
- Potting: Silicone (UL94 V-0)
- Insulation Test Voltage: 1131 VAC
- Thermal Impedance: 10.8 K/W
- Efficiency Max: 93%
Buy the Buy Traco Power DC/DC Converter Part Number TEN402425E Online
Purchase the Traco Power TEN402425E DC/DC Converter online today to ensure high-efficiency power conversion with wide input voltage range, robust protections, and proven reliability. Designed for demanding industrial environments, this 40 Watt converter offers excellent thermal performance, remote control capability, and overcurrent, overvoltage, and overtemperature protections. Perfect for applications requiring isolation and steady power supply with minimal noise, its compact design with shielded case guarantees durability and consistent operation in harsh conditions. Get yours now for dependable industrial power solutions.
Buy Traco Power TEN402425E now and experience unmatched reliability and high efficiency in industrial power conversion.
Frequently Asked Questions
Where can I buy TRACO POWER TEN402425E?
You can click on the BUY or RFQ button to purchase TEN402425E from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN402425E?
You can download the TEN402425E datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN402425E?
TRACO POWER
