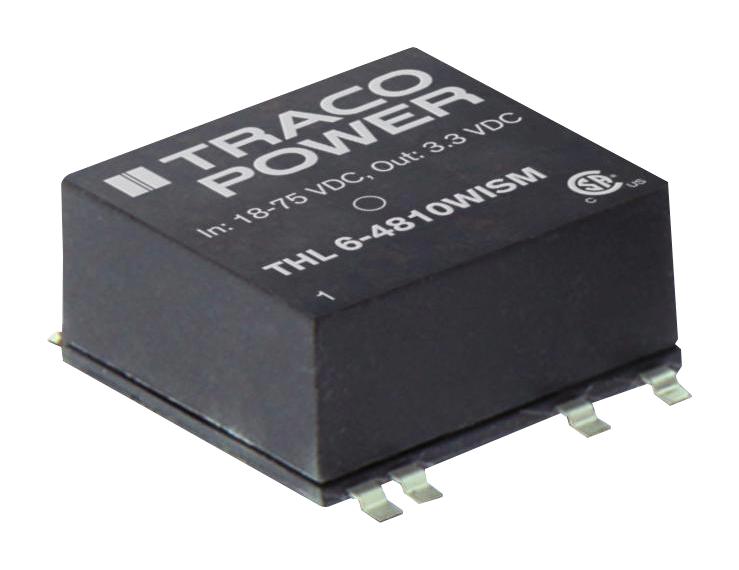

TRACO POWER THL62412WISM DC/DC Converter
The THL 6WISM series from TracoPower features compact 6-watt DC/DC converters in SMD packages designed for easy integration in data, telecom, instrumentation, and industrial electronics. They support fully regulated single and dual outputs with an ultra-wide input range of 4:1, and include an internal filter meeting EN55022 Class A standards without external components. These converters offer remote on/off, short circuit protection, high efficiency up to 83%, and an isolation voltage of 1500VDC. With operating temperatures from -40°C to +75°C, they are reliable, efficient, and compliant with safety standards, making them an ideal choice for demanding electronic systems.
TRACO POWER THL62412WISM DC/DC Converter Specifications:
- Output Power: 6 W
- Input Voltage Range: 9-36 VDC or 18-75 VDC (select models)
- Output Voltages: 3.3 VDC, 5 VDC, 12 VDC, 15 VDC, 24 VDC, and dual outputs
- Maximum Output Current: Up to 1450 mA
- Efficiency: Up to 83%
- Isolation Voltage: 1500 VDC for 60 seconds
- Isolation Capacitance: 1500 pF max.
- Isolation Resistance: >1 GOhm
- Switching Frequency: 330 kHz
- Operating Temperature Range: -40°C to +75°C
- Humidity: 95% non-condensing
- Dimensions: 20.3 mm x 10.5 mm x 22 mm
- Weight: 78 g
- Case Material: Non-conductive UL94V-0 plastic
- Standards: IEC 60950-1, UL 60950-1, EN 55022 Class A
- Ingress Protection: Not specified
- Protection: Short circuit, overcurrent, and thermal protection
- Remote On/Off: Control voltage 2.5-50 VDC or open circuit (on), -0.7 to +0.8 VDC (off)
Buy the Traco Power Series THL 6WISM DC/DC Converter: THL62412WISM
Purchase the Traco Power Series THL 6WISM DC/DC converter online today. Offering reliable 6-watt output with ultra-wide input voltage of 4:1 ratio, these converters are perfect for demanding industrial, telecom, and instrumentation applications. They feature fully regulated outputs, high efficiency up to 83%, internal filtering complying with EN55022 Class A, and 1500VDC isolation for safety and noise immunity. Compact in size (20.3x10.5x22 mm), they're easy to incorporate into your designs, backed by a 3-year warranty for peace of mind.
Order your Traco Power Series THL 6WISM DC/DC converter today and ensure your electronic projects benefit from reliable, compact power solutions.
Frequently Asked Questions
Where can I buy TRACO POWER THL62412WISM?
You can click on the BUY or RFQ button to purchase THL62412WISM from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THL62412WISM?
You can download the THL62412WISM datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THL62412WISM?
TRACO POWER
