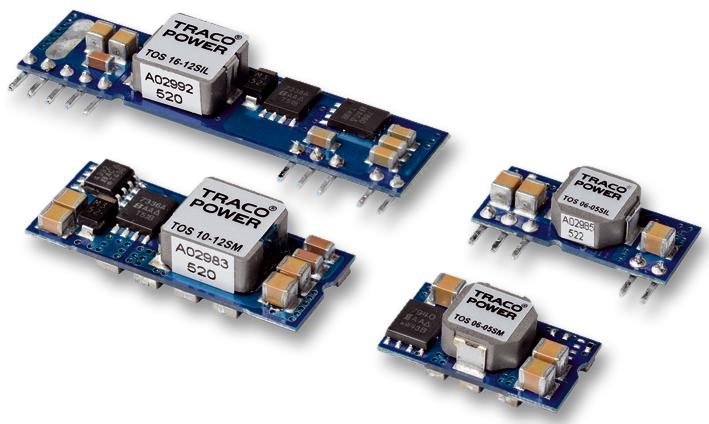

TRACO POWER TOS0605SM High-Current Point-of-Load Power Module
The TOS series is a high-performance, high-efficiency point-of-load DC/DC converter range capable of delivering up to 30A of output current. These compact modules feature a small footprint and are available in SMT or SIP packages, making them ideal for industrial and automation applications. They offer wide input voltage ranges, precise output voltage trimming from 0.75 VDC to 5.5 VDC, and efficiencies up to 96%. With remote On/Off, overcurrent, overtemperature protection, and operation from -40°C to +85°C, they ensure reliable, cost-effective power conversion in demanding environments.
TRACO POWER TOS0605SM High-Current Point-of-Load Power Module Specifications:
- Input voltage ranges: 2.4 to 5.5 VDC or 8.3 to 14.0 VDC
- Output voltage trim range: 0.75 VDC to 5.5 VDC
- Maximum output current: 30 A
- Efficiency: up to 96%
- Operating temperature: -40°C to +85°C
- Physical form: SMT and SIP packages
- Remote On/Off control
- Over current and temperature protection
- Start-up voltage: 2.2 VDC (5 V input), 7.9 VDC (12 V input)
- Switching frequency: approximately 300 kHz
- Storage temperature: -55°C to +125°C
- Humidity: 5-95%
- MTBF: over 9 million hours for 6A models, over 3.3 million hours for 10/16A models
Buy the TracoPower TOS Series – Reliable High-Current Power Module for Industrial Applications
Discover the TracoPower TOS series, designed for industrial automation and complex power distribution systems. These high-performance, high-efficiency DC/DC converters deliver up to 30A of current, with precise voltage regulation adjustable from 0.75 VDC to 5.5 VDC. Featuring compact SMT and SIP packages, remote On/Off controls, and overcurrent and thermal protections, they operate reliably from -40°C to +85°C. With efficiencies up to 96%, these modules optimize energy use, reduce heat generation, and ensure stable power in space-constrained industrial settings. Buy online today for durable and efficient power conversion.
Get TracoPower TOS series today—built for precision, high efficiency, and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy TRACO POWER TOS0605SM?
You can click on the BUY or RFQ button to purchase TOS0605SM from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TOS0605SM?
You can download the TOS0605SM datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TOS0605SM?
TRACO POWER
