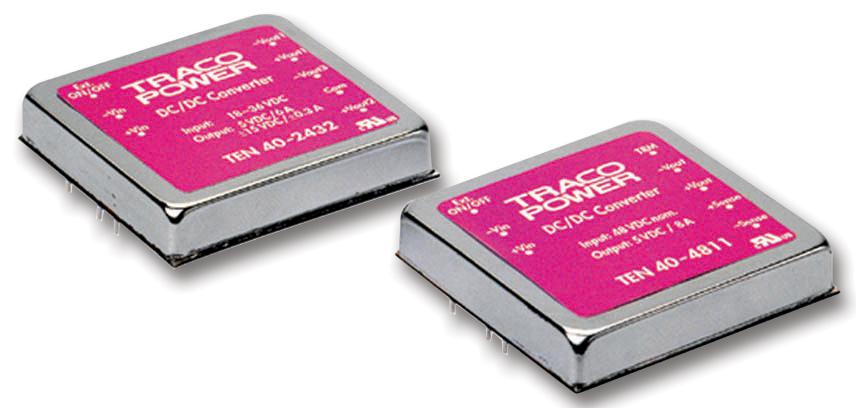

TRACO POWER TEN402431 DC/DC Converter Module
The POWER TEN 40 series comprises high-performance 40W DC/DC converter modules designed for rugged industrial and communication applications. Featuring high efficiency and a compact 51x51x10mm package, these converters support wide input voltage ranges from 2:1 ratios, with models offering single, dual, and triple outputs. They operate reliably from -40°C to +75°C, including features such as remote On/Off control, output voltage trimming, over-voltage and over-temperature protections, short circuit prevention, and built-in filtering. These RoHS-compliant, lead-free power modules ensure stable, tightly regulated voltages ideal for space-constrained, battery-powered, or distributed electronic systems.
TRACO POWER TEN402431 DC/DC Converter Module Specifications:
- Power Output: 40 W
- Input Voltage Range: 2:1 wide input ratio, models from 9 VDC to 75 VDC
- Input Current at no load: 200 mA at 12 V models, 100 mA at 24 V models, 50 mA at 48 V models
- Input Current at full load: 2680 mA (3.3 V), 1325 mA (5 V), 655 mA (12 V), 4065 mA (5 V dual), 2000 mA (12 V dual), 1685 mA (3.3 V triple)
- Efficiency: Up to 90%
- Operating Temperature Range: -40°C to +75°C
- Isolation Voltage: 500 VDC (input/output)
- Ripple & Noise (20 MHz BW): 50 mV (3.3V/5V), 75-150 mV (others)
- Dimensions: 51x51x10 mm
- Weight: 65 g
- Soldering Temperature Max: 265°C for 10 sec
- Safety Standards: UL 60950, EN 60950, IEC 60950
- Certifications: RoHS compliant, Lead-free
- Additional features: Remote On/Off, over-voltage, thermal shutdown, short circuit and overload protection
Buy the Power Series TEN 40 DC/DC Converters: TEN402431
Purchase the Power Series TEN 40 DC/DC converter module TEN402431 online today to ensure your industrial or communication system benefits from high efficiency, wide input voltage support, and comprehensive protection features. With a compact design measuring only 51x51x10mm and operating reliably between -40°C and +75°C, this rugged converter guarantees stable, tightly regulated voltages for space-constrained and demanding applications. Its RoHS-compliant, lead-free construction and multiple safety protections make it an ideal choice for energy-efficient, durable power management in various electronic systems.
Buy Power Series TEN 40 DC/DC converter module TEN402431 now and experience unmatched reliability and high efficiency in compact power solutions.
Frequently Asked Questions
Where can I buy TRACO POWER TEN402431?
You can click on the BUY or RFQ button to purchase TEN402431 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN402431?
You can download the TEN402431 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN402431?
TRACO POWER
