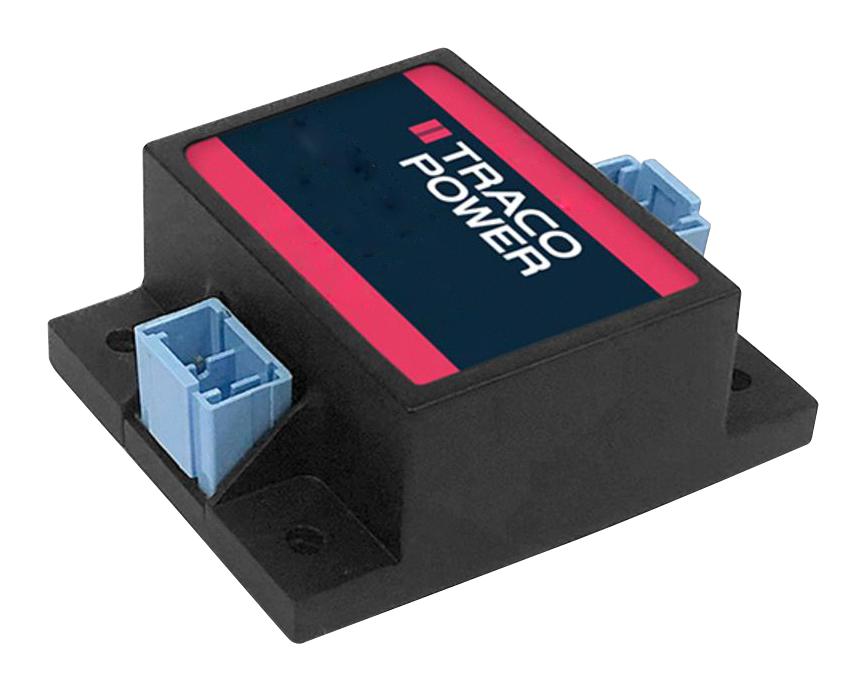

TRACO POWER TMPW10115J Power Supply Module
The TMPW 10-J series is a compact 10 Watt AC/DC power supply designed for industrial and household applications. It features a wide input voltage range of 90-305 VAC, high efficiency up to 86%, and an operating temperature range of -40°C to +70°C. This power module provides 47000 VAC 1/0-isolation, internal EN 55032 class B filter, and complies with safety standards IEC/EN/UL 62368-1. Its rugged plastic case is suited for demanding environments, offering reliable performance with low standby power consumption and protection class II preparation.
TRACO POWER TMPW10115J Power Supply Module Specifications:
- Input Voltage AC Range: 90 - 305 VAC, DC Range: 100 - 250 VDC
- Input Frequency: 47 - 63 Hz (designed for 47 - 440 Hz)
- Output Power: 10 Watts
- Output Voltage Options: 5 VDC, 12 VDC, 15 VDC, 24 VDC
- Output Current Max.: 2000 mA, 833 mA, 667 mA, 417 mA respectively
- Efficiency: Up to 86%
- AC 1/0-Isolation Voltage: 47000 VAC
- Temperature Range: -40°C to +70°C
- Ripple and Noise: 60-240 mVp-p
- Protection Class: II, reinforced insulation
- Operating Altitude: Up to 5000 meters
- Dimensions: 2.17 x 1.08 inches (55.1 x 27.4 mm)
- Housing Material: Plastic (UL 94 V-0 rated)
- Safety Certifications: IEC/EN/UL 62368-1, EN 60335-1
- Short Circuit and Overvoltage Protection: Yes, Automatic Recovery
- Leakage Current: 250 μA max.
- Working Voltage (Rated): 254 VAC
- Cooling System: Natural convection
- Reliability: MTBF 450,000 hours
- Weight: 65 grams
Buy the Traco Power TMPW 10-J – Reliable Power Supply for Industrial Applications
Order the Traco Power TMPW 10-J series power supply online today and enjoy high efficiency, wide input voltage, and reliable operation for industrial and household electronics. Its compact size, reinforced insulation, and internal filters make it an ideal choice for demanding applications. With safety certifications and automatic protection features, this 10-watt module ensures safe, consistent power delivery. Get yours now to benefit from quick delivery and exceptional performance suited for diverse technical and industrial needs.
Buy Traco Power TMPW 10-J now and experience unmatched reliability and performance with a compact design perfect for demanding environments.
Frequently Asked Questions
Where can I buy TRACO POWER TMPW10115J?
You can click on the BUY or RFQ button to purchase TMPW10115J from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMPW10115J?
You can download the TMPW10115J datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMPW10115J?
TRACO POWER
