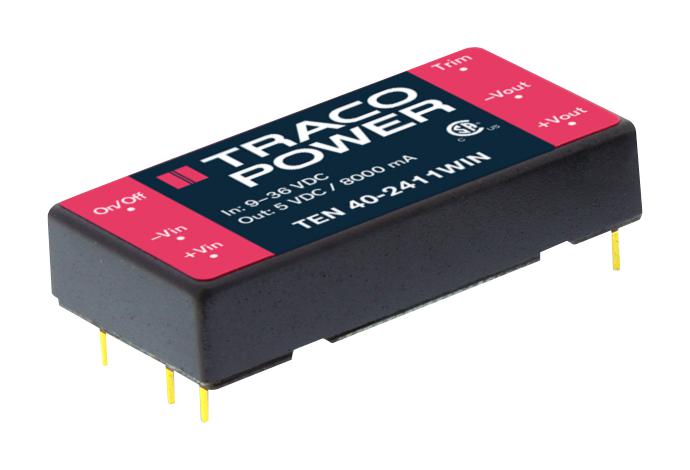

TRACO POWER TEN404823WIN High Power DC/DC Converter
The TEN 40WIN Series consists of high-efficiency, 40-watt isolated DC/DC converters designed for space-constrained industrial and communication applications. Featuring an ultra-wide 4:1 input range, adjustable output voltage, remote ON/OFF control, and protection against short circuits and overvoltage, these modules operate reliably from -40°C to +75°C. Their compact 1 x 2-inch footprint makes them suitable for distributed power architectures in industrial electronics, instrumentation, and mobile equipment. Certifications include UL, IEC, and CSA. They offer high efficiency up to 91% and a 3-year warranty.
TRACO POWER TEN404823WIN High Power DC/DC Converter Specifications:
- Input voltage range: 3.3 VDC to 48 VDC with 90-115 mA no-load current
- Output voltages: 3.3 V, 5 V, 9-36 V, 12 V, 15 V, 24 V with maximum currents from 1.670 A to 8 A
- Efficiency: up to 91% at 24 V output, typical 89-90%
- Isolation voltage: 1500 VDC, input/output
- Operating temperature: -40°C to +75°C, case temperature up to +105°C
- Ripple and noise: 100-150 mVpk-pk, bandwidth 20 MHz
- Protection: short circuit, overvoltage, overload; hiccup mode; auto recovery
- Dimensions: 1
- 2
- 0.4
- 30.48
- 50.8
- 11
- 10.2
- Weight: 30 g; case: aluminum anodized; potting: epoxy UL 94V-0
- Switching frequency: 320 kHz; MTBF: 330,000 hours; certifications: UL, CSA, IEC
Buy the TRAC Power TEN 40WIN – Reliable DC/DC Converter for Industrial Applications
Enhance your industrial systems with the TRAC Power TEN 40WIN series. These 40 watt isolated converters feature ultra-wide input voltage, high efficiency up to 91%, and robust protections, ensuring stable power in demanding environments. Compact and lightweight, they fit perfectly into space-constrained designs for industrial electronics, instrumentation, and communication equipment. With adjustable output voltage, remote ON/OFF, and proven reliability with a 3-year warranty, these converters deliver essential power for diverse industrial applications. Buy online now for dependable, high-performance power solutions.
Order your TRAC Power SeriesTEN 40WIN high-performance 40 watt DC/DC converter today and ensure reliable, efficient power with space-saving design.
Frequently Asked Questions
Where can I buy TRACO POWER TEN404823WIN?
You can click on the BUY or RFQ button to purchase TEN404823WIN from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN404823WIN?
You can download the TEN404823WIN datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN404823WIN?
TRACO POWER
