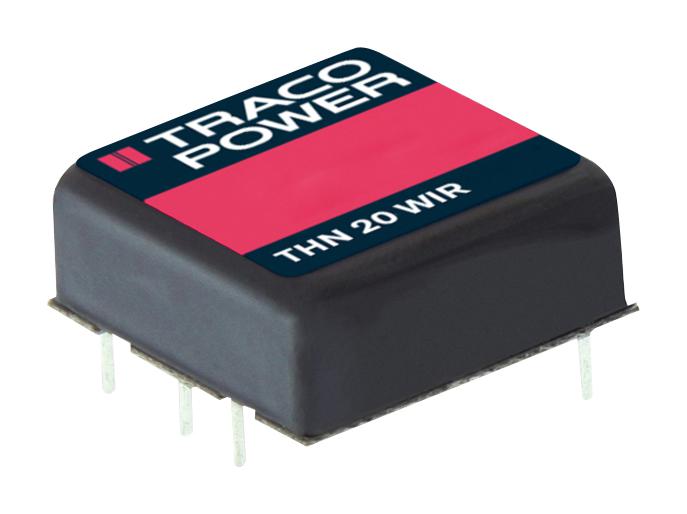

TRACO POWER THN207211WIR DC/DC Converter
The THN 20WIR series from Traco Power are rugged, high-reliability 20 Watt DC/DC converters designed for harsh environments and railway applications. Featuring a compact 1” x 1” metal package, these converters offer a wide 4:1 input voltage range, high efficiency up to 91%, and robust protection including overload, overvoltage, and short circuit. They meet safety standards EN 50155, EN 61373, and fire safety EN 45545-2, making them suitable for transportation systems. Built-in EMI filtering, Remote On/Off, and output trim functions enhance their versatility in industrial and transportation applications, delivering stable power in extreme conditions.
TRACO POWER THN207211WIR DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC, 18-75 VDC, 36-160 VDC
- Output Power: 20 Watts
- Operating Temperature: -40°C to +65°C without derating
- Efficiency: Up to 91%
- Isolation Voltage: 3000 VDC (Input/Output)
- Protection: Overload, Overvoltage, Short Circuit
- Remote On/Off: Yes
- Output Voltage Adjustment: ±10% for 24 V models, ±20%, or ±10% for others
- Ripple and Noise: 75 mVp-p (33 Vout models), 100 mVp-p (12 Vout, 15 Vout, 24 Vout)
- Transient Response: 250 µs typical
- Start-up Time: 30 ms typical
- Isolation Resistance: ≥17 MΩ @ 500 VDC
- Certifications: EN 50155, EN 61373, EN 45545-2, UL 62368-1, IEC 62368-1
- Housing Material: Copper, with Silicone Potting
- Dimensions: 25 x 25 x 10 mm (1” x 1” x 0.4”)
- Cooling: Natural convection
- Vibration Resistance: MIL-STD-810F, EN 61373
Buy the Traco Power Series THN Series DC/DC Converter: THN207211WIR
Secure your power solutions today with the Traco Power THN 20WIR series. These rugged 20 Watt DC/DC converters offer high efficiency, broad input ranges, and compliance with railway safety standards. Perfect for industrial, transportation, and harsh environment applications, featuring built-in EMI filtering, remote On/Off, and output trim for greater control. Ensure reliable operation in extreme temperatures from -40°C to +65°C, with robust protection including overload, overvoltage, and short circuit. Order online now for fast delivery and trusted performance.
Buy Traco Power THN 20WIR now and experience unmatched reliability and high efficiency for demanding industrial and railway systems.
Frequently Asked Questions
Where can I buy TRACO POWER THN207211WIR?
You can click on the BUY or RFQ button to purchase THN207211WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THN207211WIR?
You can download the THN207211WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THN207211WIR?
TRACO POWER
