TRACO POWER TEN51221 DC/DC Converter Module
The POWER TEN 5 Series is a range of high-reliability DC/DC converters designed for industrial, communication, and battery-powered applications. Featuring a wide 2:1 input range with UL 60950-1 compliance, these compact modules offer high efficiency up to 86%, extended operating temperature from -40°C to 85°C, and 1500 VDC isolation. They include automatic short circuit protection, input filtering to meet EN 55022-A and FCC standards, and are constructed in a shielded metal case with an insulated baseplate. Suitable for demanding environments, these modules ensure stable power with minimal noise and long MTBF exceeding 1 million hours.
TRACO POWER TEN51221 DC/DC Converter Module Specifications:
- Input voltage range: 5 VDC to 48 VDC with surge voltages up to 100 V max.
- Output voltage options: 3.3 V, 5 V, 12 V, 15 V, 18 V, 36 V, 75 VDC.
- Output currents up to 1200 mA, efficiency up to 86%.
- Isolation voltage: 1500 VDC for 60 seconds.
- Operating temperature: -40°C to +85°C with derating of 3.3%/K above 70°C.
- Ripple and noise: 50 mVpk-pk typical, 75 mVpk-pk max.
- MTBF: >1 million hours, meeting industrial reliability standards.
- Weight: 16.9 g, casing material: steel with UL 94V-0 epoxy potting.
- Switching frequency: 300 kHz typical, input filtering to meet EN 55022 class A and FCC level A.
- Supports capacitive loads up to 6800 pF for single output, 1000 pF for dual outputs.
- Short-circuit protection: indefinite, automatic recovery. Start-up time: approx. 10 ms.
- Soldering temperature: max. 260°C for 10 seconds.
- Compliance: UL 60950-1, IEC/EN 60950-1, RoHS, Reach.

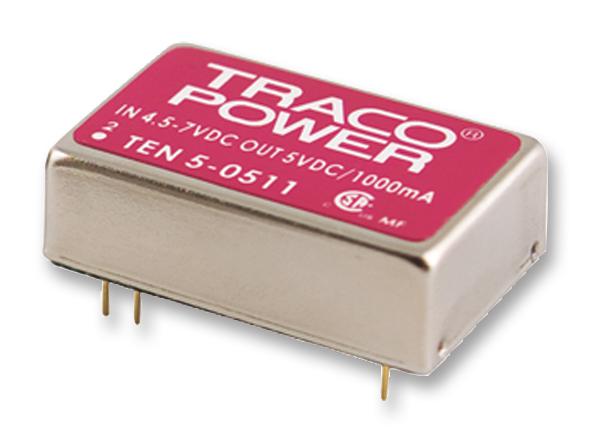

Buy the Buy TracoPower Power Ten 5 Series Part Number TEN51221 Online
Secure your Power Ten 5 Series module, model TEN51221, effortlessly online. These high-reliability, high-efficiency converters with wide input range and UL approvals ensure stable power supply for demanding environments. Featuring automatic short circuit protection, exceptional temperature tolerance, and minimal noise, they are ideal for industrial, communication, and battery-powered equipment. Purchase online today to benefit from fast delivery, superior build quality, and expert support, ensuring your project has dependable power solutions with maximum operational uptime and compliance.
Order your TracoPower Power Ten 5 Series TEN51221 today and guarantee reliable, efficient power conversion for industrial, communication, and battery applications.
Frequently Asked Questions
Where can I buy TRACO POWER TEN51221?
You can click on the BUY or RFQ button to purchase TEN51221 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN51221?
You can download the TEN51221 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN51221?
TRACO POWER
