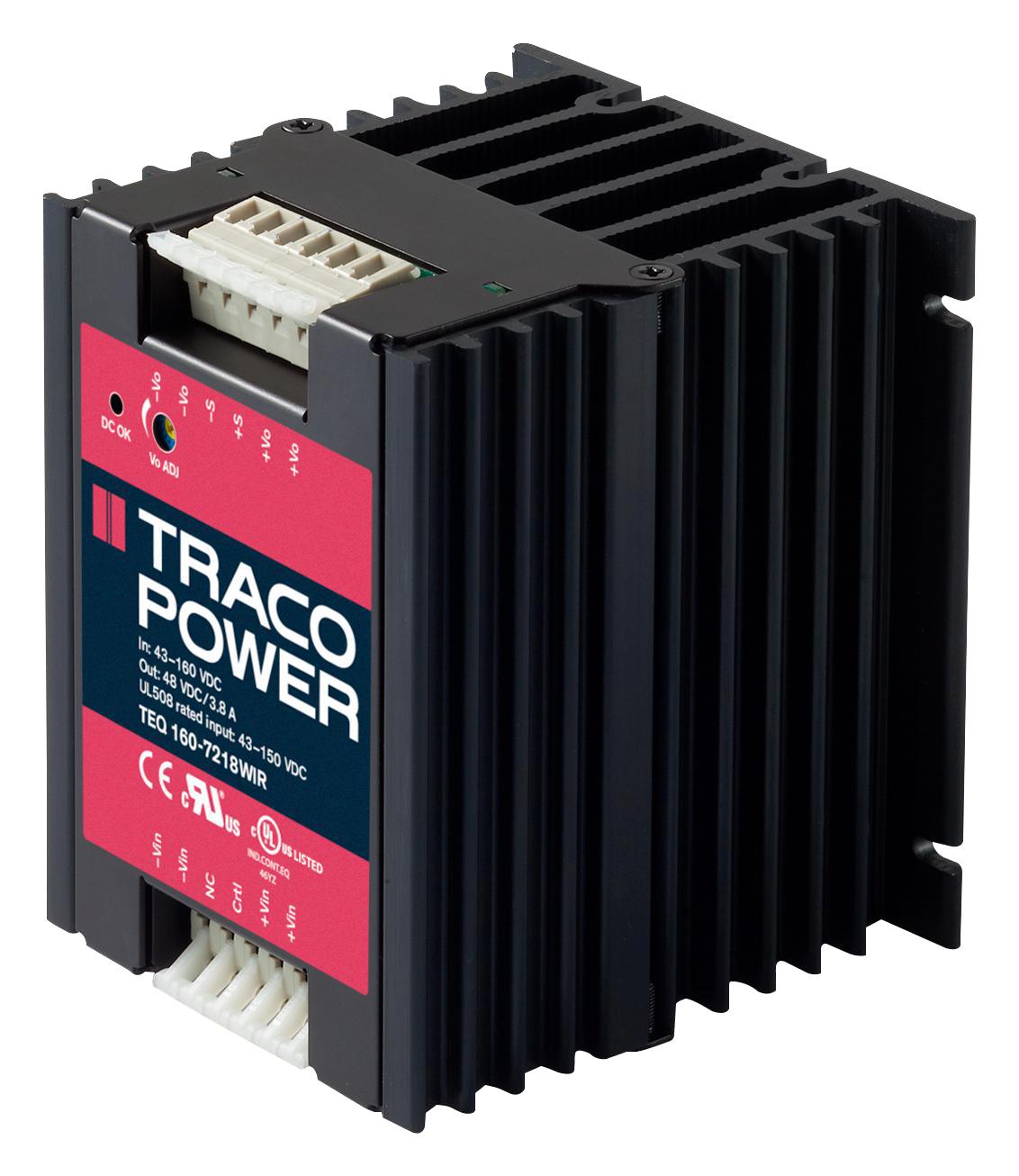

TRACO POWER TEQ1604816WIR Industrial Power Converter
The TEQ 160WIR series from TracoPower features rugged, sealed 160W DC/DC converters suitable for industrial and railway applications. These modules have an ultra-wide 4:1 input voltage range, high efficiency up to 90%, and operate from -40°C to +75°C without derating. They offer advanced features such as output voltage trimming, remote on/off, undervoltage lockout, soft-start, overvoltage protection, short-circuit protection, and high isolation voltage. Certified for IEC/EN 60950-1, UL, and railway standards, they are ideal for demanding environments requiring reliable and efficient power conversion.
TRACO POWER TEQ1604816WIR Industrial Power Converter Specifications:
- Nominal input voltages of 48VDC and 110VDC
- Output voltages of 12VDC, 24VDC, 28VDC, and 48VDC
- Maximum output currents ranging from 3.2A to 15A depending on configuration
- Efficiency up to 90%
- Operating temperature -40°C to +75°C without derating, up to +90°C with derating
- Input filtering compliant with EN 55032, class A
- Isolation voltage input/output 2250 VDC for 60 seconds
- Isolation voltage input/case 1600 VDC
- Ripple and noise: 125 mVp-p (12V), 250 mVp-p (24V/28V), 350 mVp-p (48V) at 20 MHz bandwidth
- Switching frequency approximately 250kHz
- Dimensions approximately 103.2 x 87.6 x 74.2 mm
- Mounting: chassis-mounted, sealed metal case
- Certifications: IEC 60950-1, UL 508, CSA C22.2 No. 107.1-01, EN 50155 for railway use
- Environmental: Humidity 5-95% RH non-condensing, thermal shock compliant with MIL-STD-810F
- Reliability: MTBF >400,000 hours at +25°C
Buy the TracoPower TEQ 160WIR – Reliable Industrial Power Supply for Railway and Industrial Applications
Purchase the TracoPower TEQ 160WIR series online today and ensure your industrial or railway system benefits from high efficiency, rugged design, and certified safety standards. These 160W DC/DC converters deliver robust power for challenging environments, featuring ultra-wide input voltage ranges, excellent thermal performance, and multiple safety features including overvoltage and short-circuit protection. With quick delivery and seamless ordering, enhance your system reliability and efficiency by acquiring this high-performance power module now. Trust TracoPower for dependable industrial power solutions.
Buy TracoPower TEQ 160WIR now and experience unmatched reliability and performance in demanding industrial and railway environments.
Frequently Asked Questions
Where can I buy TRACO POWER TEQ1604816WIR?
You can click on the BUY or RFQ button to purchase TEQ1604816WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEQ1604816WIR?
You can download the TEQ1604816WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEQ1604816WIR?
TRACO POWER
