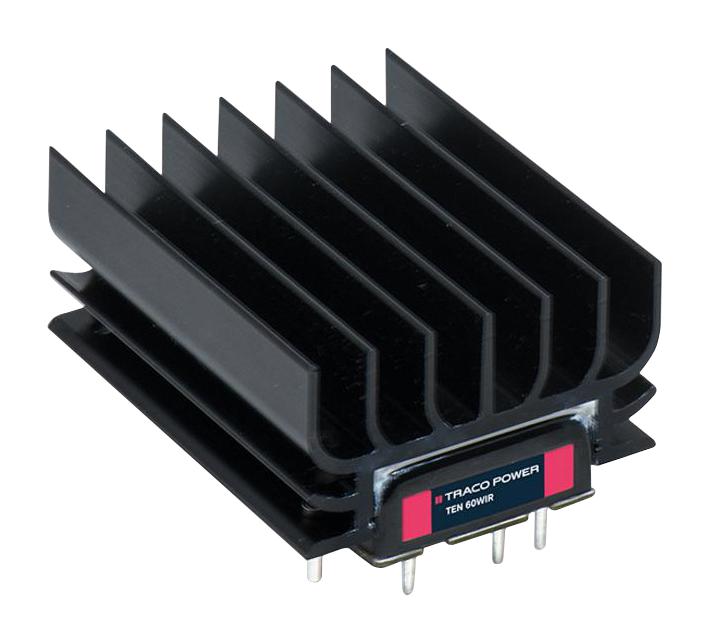

TRACO POWER TEN607223WIR Railway Power Converter
The TEN 6OWIR Series is a rugged, railway-approved 60 Watt DC-DC converter with a compact 2x1 inch package, wide 4:1 input range (9-36, 18-75, 36-160 VDC), and high efficiency up to 92%. It features EN 50155 and EN 61373 standards compliance for railway applications, with an operating temperature from -40°C to +70°C without derating. The converter provides 3,000 VDC isolation, adjustable output, remote on/off, low inrush, and includes a preassembled heatsink for robust, reliable performance in challenging environments.
TRACO POWER TEN607223WIR Railway Power Converter Specifications:
- Power: 60 Watts
- Input Voltage Range: 9-36 VDC, 18-75 VDC, 36-160 VDC
- Input Current at No Load: 15 mA (24V, 48V, 44V models)
- Surge Voltage: 50 VDC (24V), 100 VDC (48V), 200 VDC (110V)
- Output Voltage Adjustment: ±10% to +20% depending on model
- Output Power Limitation: Not to rated power
- Voltage Set Accuracy: ±1%
- Line Regulation: 0.2% max.
- Load Regulation: 0.5% (single), 1% (dual) models
- Ripple & Noise: 75-300 mVp-p depending on output voltage
- Capacitive Load: Up to 17,000 pF (5V) and 3,000 μF (12V)
- Isolation Voltage: 3,000 VDC input-output
- Efficiency: Up to 92%
- Operating Temperature: -40°C to +70°C (without derating), up to +90°C
- Protection: Short circuit, overvoltage, and overtemperature
- Start-Up Time: 30-60 ms
- Vibration & Shock: MIL-STD-810F, EN 61373 compliance
- Housing: Copper with non-conductive potting, natural convection cooling
- Remote Off/On: Via control pin (3-12 VDC or open circuit)
- Insulation: Functional, with 3,000 VDC input-output test voltage
- Standards: EN 50155, EN 61373, IEC 62368-1, UL 62368-1, EN 45545-2
Buy the Traco Power Series TEN 6OWIR: 60W Railway DC-DC Converter
Purchase the Traco Power TEN 6OWIR series 60 Watt DC-DC converter online today. Designed for railway and harsh industrial environments, it offers wide input voltage ranges, high efficiency up to 92%, and robust safety features including input-output isolation of 3,000 VDC. Compact and reliable, this converter supports EN 50155 and EN 61373 standards, operates from -40°C to +70°C without derating, and includes a preassembled heatsink. Ideal for demanding applications requiring stability, durability, and versatile output options.
Get Traco Power TEN 6OWIR series 60W railway DC-DC converter today—built for rugged railway and industrial applications with high efficiency and reliability.
Frequently Asked Questions
Where can I buy TRACO POWER TEN607223WIR?
You can click on the BUY or RFQ button to purchase TEN607223WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN607223WIR?
You can download the TEN607223WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN607223WIR?
TRACO POWER
