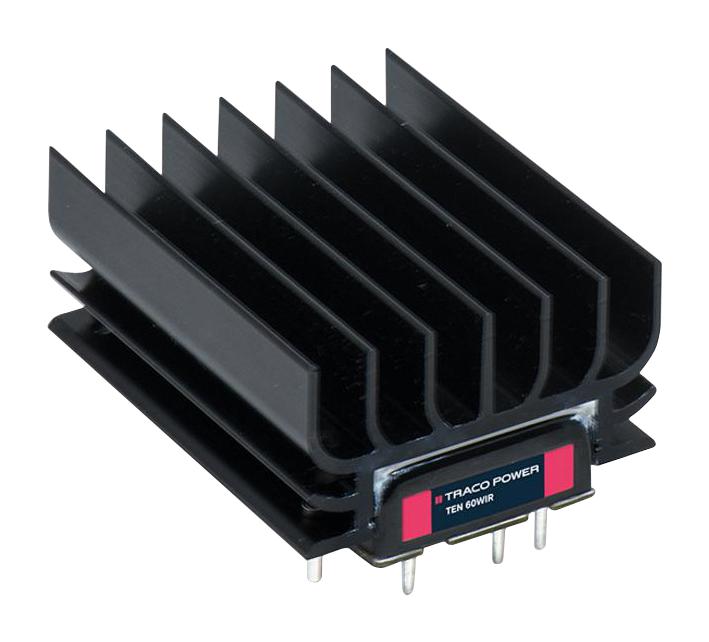

TRACO POWER TEN607225WIR Railway DC/DC Converter
The TEN 6OWIR Series is a rugged 60 Watt railway-approved DC/DC converter featuring a compact 2"x1" metal package with a preassembled heatsink. It offers a wide 4:1 input voltage range from 9V to 160V DC, making it suitable for industrial and transportation applications. The converter complies with EN 50155, EN 61373, and EN 45545-2 standards for fire behavior, with high efficiency up to 92%, an operating temperature range of -40°C to +70°C, and a range of safety and EMC certifications. It includes features like remote on/off, adjustable output voltage, 3,000 VDC isolation, and continuous short circuit protection, ensuring reliable operation in demanding environments.
TRACO POWER TEN607225WIR Railway DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC, 18-75 VDC, 36-160 VDC
- Input Current at No Load: 15 mA (24V, 48V, 4410V models)
- Surge Voltage: 50 VDC (24V), 100 VDC (48V), 200 VDC (110V)
- Output Voltage Adjustment: ±10% to +20% for certain models
- Output Power: 60 Watts
- Efficiency: Up to 92%
- Operating Temperature Range: -40°C to +70°C (without derating)
- Isolation Voltage: 3,000 VDC (input to output)
- Protection: Short circuit, overvoltage, ESD immunity
- Power Derating: 2.86%/K above 70°C
- Dimensions: 2" x 1" x 0.6"
- Mounting: Through-hole, copper housing, silicone potting
- EMC & Safety: EN 50155, EN 61373, EN 45545-2, UL 62368-1, IEC 62368-1
Buy the Traco Power Series DC/DC Converter: TEN607225WIR
Purchase the Traco Power TEN 607225WIR online today for a reliable 60 Watt railway-approved DC/DC converter with wide input range, high efficiency, and safety features. Designed to operate in demanding environments, it features a compact form factor, adjustable output, remote on/off, and excellent thermal performance. Ideal for transportation and industrial applications, this converter ensures stable power regulation and compliance with international safety standards. Secure your supply chain with a dependable, rugged power conversion solution now available for quick online ordering.
Get Traco Power TEN 607225WIR today—built for high efficiency and rugged reliability in industrial and railway environments.
