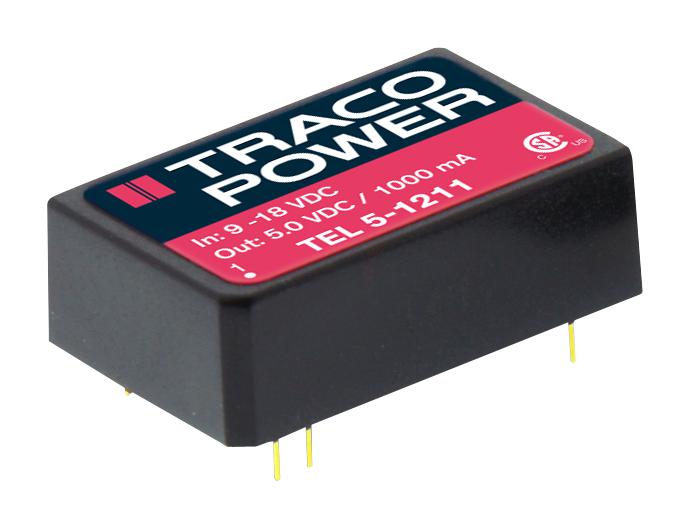

TRACO POWER TEL52411 DC/DC Converter Module
The TEL 5 Series offers reliable 5 Watt DC/DC converter modules featuring wide 2:1 input voltage ranges and high efficiency up to 86%. Designed with cost-effective SMD technology, these modules ensure excellent performance and high reliability with an MTBF exceeding 1 million hours. They operate efficiently within -40°C to +85°C at full load and come with safety certifications including UL 60950-1. Ideal for industrial and consumer electronics, these converters provide regulated outputs, high power density, and robust short-circuit protection in a compact DIP package. Their versatile design supports various input voltages and output configurations.
TRACO POWER TEL52411 DC/DC Converter Module Specifications:
- Input voltage range: 3.3 VDC to 36 VDC depending on model
- Output voltage options: 3.3 VDC, 5 VDC, 12 VDC, 15 VDC
- Maximum output current: 1200 mA
- Efficiency: up to 86%
- Operating temperature: -40°C to +85°C
- MTBF: >1 million hours
- Isolation voltage: 1500 VDC
- Ripple and noise: 75 mVpk-pk
- Switching frequency: 300 kHz
- Input current no load: 5-20 mA
- Case material: non-conductive UL 94V-0 plastic
- Weight: 17 g
- Soldering temperature: max 265°C
- Protection: short-circuit, automatic recovery
- Safety standards: UL, CSA, IEC/EN 60950-1
Buy the TracoPower TEL 5 Series – Reliable DC-DC Converters for Industrial Applications
Order the TracoPower TEL 5 Series DC/DC converter modules online today. These highly efficient, 5-watt power supplies feature wide input ranges, excellent reliability, and safety certifications. Perfect for industrial and consumer electronics, they operate at high temperatures with MTBF exceeding 1 million hours. Their compact design with UL 94V-0 plastic casing ensures durability and safety. Easy to integrate, these converters provide regulated outputs, overload protection, and low ripple noise, making them an ideal choice for demanding applications requiring stable power solutions.
Get TracoPower TEL 5 Series today—built for precision, high efficiency, and long-lasting durability in industrial and consumer electronics.
Frequently Asked Questions
Where can I buy TRACO POWER TEL52411?
You can click on the BUY or RFQ button to purchase TEL52411 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEL52411?
You can download the TEL52411 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEL52411?
TRACO POWER
