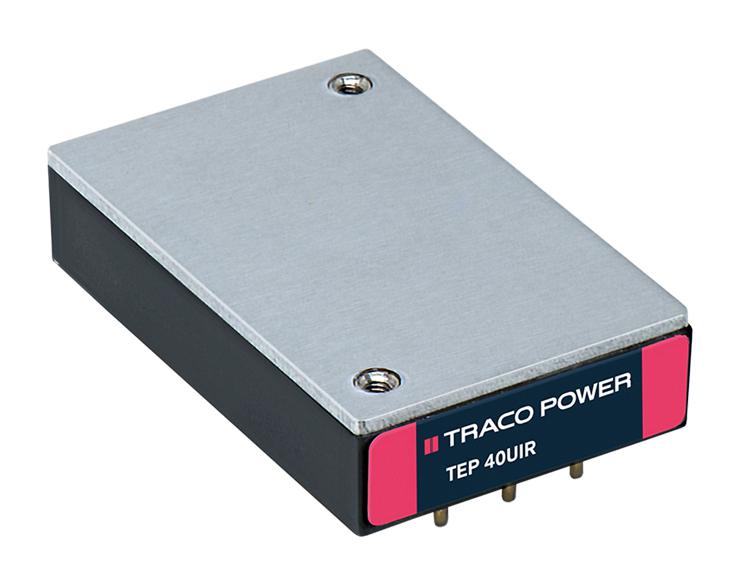

TRACO POWER TEP407212UIR Railway DC/DC Converter
The TEP 40UIR series offers high-performance railway DC/DC converters with a 40W power output and ultra-wide input voltage range of 9-75 VDC, making them suitable for diverse industrial and transportation applications. These compact converters feature a 2.3”x1.45”x0.5” metal package, high efficiency up to 91%, and a wide operating temperature from -40°C to +85°C. Approved for railway standards EN 50155, EN 61373, and EN 45545-2, they include features like adjustable output voltage, remote on/off, and 3,000 VAC isolation, ensuring reliable operation under harsh conditions.
TRACO POWER TEP407212UIR Railway DC/DC Converter Specifications:
- Power Output: 40 Watts
- Input Voltage Range: 9-75 VDC (nominal), surge up to 185 VDC for 1 second
- Output Voltage: 5 V, 12 V, 15 V, 24 V, or 48 V (adjustable ±20%)
- Output Current: 8,000 mA (5 V), 3,330 mA (12 V), 2,670 mA (15 V), 1,670 mA (24 V), 830 mA (48 V)
- Efficiency: up to 91%
- Operating Temperature Range: -40°C to +85°C
- Isolation Voltage: 3,000 VAC input to output
- Dimensions: 2.3” x 1.45” x 0.5” (58.4 mm x 36.8 mm x 12.7 mm)
- Protection: Overvoltage, short circuit, continuous automatic recovery
- Features: Adjustable output, remote on/off, undervoltage lockout, hold-up circuit
- Standards: EN 50155, EN 61373, EN 45545-2, IEC 62368-1, UL 62368-1
- Housing: Metal case with reinforced or basic insulation per model
- Certifications: RoHS, REACH, and fire safety compliant
- Vibration & Shock: MIL-STD-810F, EN 61373 compliant
- Cooling: Natural convection
- Humidity: Max 95% non-condensing
Buy the Traco Power TEP 40UIR – Reliable Railway DC/DC Converter for Industrial Applications
Purchase the Traco Power TEP 40UIR series online today and benefit from a compact, highly efficient 40W railway DC/DC converter. Designed for the harshest environments, it offers an ultra-wide input range of 9-75 VDC, adjustable output voltage, and extensive safety certifications including EN 50155. Its robust construction, high efficiency of up to 91%, and features like remote on/off make it ideal for railway, industrial, and automation applications. Enjoy fast delivery, reliable performance, and expert support when you order online now.
Buy Traco Power TEP 40UIR now and experience unmatched reliability and performance in railway and industrial power systems.
Frequently Asked Questions
Where can I buy TRACO POWER TEP407212UIR?
You can click on the BUY or RFQ button to purchase TEP407212UIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEP407212UIR?
You can download the TEP407212UIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEP407212UIR?
TRACO POWER
