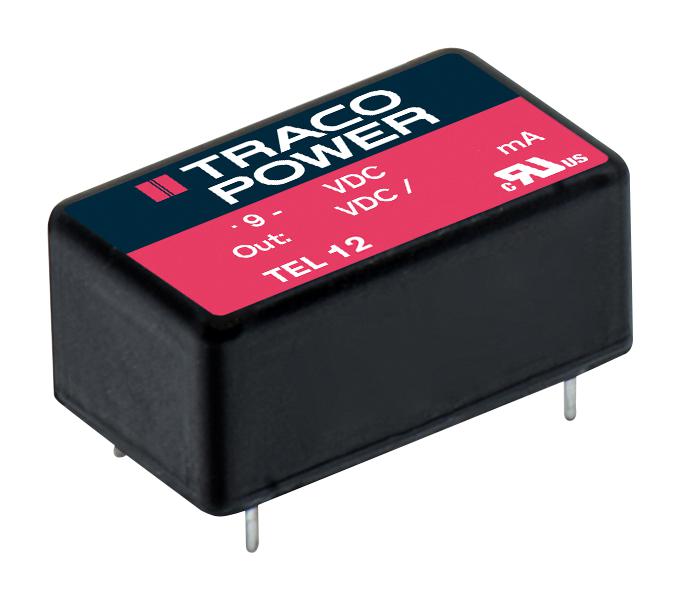

TRACO POWER TEL124811 DC/DC Power Converter
The TEL 12 power supply series offers a compact 12 Watt DC/DC converter in an ultra-robust DIP-16 metal case, delivering high power density at 3.61 W/cm³. Designed for space-critical applications, it features a wide 2:1 input voltage range, up to 88% efficiency, and operates from -40°C to +88°C. It includes an internal input filter, short circuit protection, and complies with EN 55032 class A standards, making it suitable for industrial, instrumentation, and IT applications requiring reliable, efficient power conversion.
TRACO POWER TEL124811 DC/DC Power Converter Specifications:
- Power: 12 Watt
- Input Voltage Range: 5.1 VDC to 48 VDC
- Output Voltage Options: 5.1 VDC, 12 VDC, 15 VDC, 24 VDC, -12 VDC, -15 VDC
- Output Current: Up to 1A
- Efficiency: Up to 88%
- Operating Temperature Range: -40°C to +88°C
- Case Material: Aluminum alloy, black anodized
- Dimensions: 16 mm x 15.24 mm x 22.8 mm (approx.)
- Isolation Test Voltage: 1600 VDC input to output
- Soldering Profile: Wave soldering at 260°C for 10 seconds
- Weight: 8.6 grams
- Certifications: UL 62368-1, IEC 62368-1, EN 55032 class A
- Protection: Short circuit, input under-voltage lockout
Buy the Traco Power Series TEL 12 Power Supply: TEL124811
Purchase the Traco Power TEL124811 digital power converter online today for a reliable, high-efficiency 12 Watt solution. Its compact metal case, wide input range, and exceptional thermal performance make it perfect for industrial, instrumentation, and IT applications. With a robust design, UL and IEC certifications, and comprehensive safety features including short circuit protection, this converter ensures stable operation across a broad temperature range from -40°C to +88°C. Experience smooth integration, optimal power density, and long-lasting durability—order now for immediate delivery.
Get Traco Power TEL124811 today—built for precision, durability, and space-saving industrial applications.
Frequently Asked Questions
Where can I buy TRACO POWER TEL124811?
You can click on the BUY or RFQ button to purchase TEL124811 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEL124811?
You can download the TEL124811 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEL124811?
TRACO POWER
