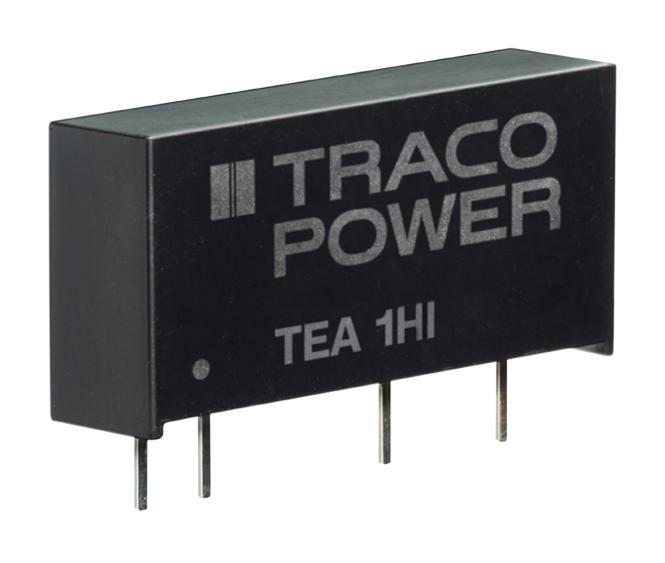

TRACO POWER TEA10505HI DC/DC Converter
The TEA 1HI Series is a compact, cost-efficient 1 Watt unregulated DC/DC converter designed with high isolation of 4000 VDC, broad temperature range from -40°C to +105°C, and industry-standard SIP-7 packaging. It features high efficiency up to 78%, low ripple 50 mVp-p, and is suitable for space-constrained, high-volume applications requiring reliable power conversion. With safety standards aligned for multimedia equipment, it provides a dependable low-cost solution for various industrial and electronic systems operating in demanding environments.
TRACO POWER TEA10505HI DC/DC Converter Specifications:
- Input Voltage Range: 5 VDC (+10%) with surge voltage up to 9 VDC (1 s max)
- Input Current at no load: 28 mA typical
- Isolation Voltage: 4000 VDC input to output
- Operating Temperature: -40°C to +105°C, derating above 85°C at 5%/K
- Output Voltage: 5 VDC, typ. 78% efficiency, max. load 200 mA
- Ripple and Noise: 50 mVp-p (50 MHz bandwidth)
- Capacitive Load: Up to 1000 μF
- Frequency: 100 kHz typ.
- Housing: SIP-7 package, plastic UL 94 V-0 rated, epoxy potting
- Dimensions: 19.1 mm x 9.5 mm x 11.2 mm approximately
- Protection: Limited short circuit, safety standards compliant for multimedia
- Insulation Resistance: 17000 MΩ at 500 VDC
- Isolation Capacitance: 30 pF (typ.)
- Start-up Time: 30 ms max.
- Reliability: MTBF of 2,000,000 hours
Buy the Traco Power TEA10505HI – Reliable DC Converter for Industrial Applications
Order the Traco Power TEA 1HI Series DC/DC Converter today for a cost-effective, high-quality power solution. Designed for industrial and electronic systems, it offers high isolation of 4000 VDC, efficiency up to 78%, and a broad temperature range from -40°C to +105°C for reliable operation in tough environments. The SIP-7 package ensures easy integration in space-constrained applications, making it ideal for high-volume, cost-sensitive projects that demand dependable power. Secure your supply of premium DC/DC converters online now.
Buy Traco Power TEA 1HI series DC/DC converter now and experience unmatched reliability and performance in space-constrained electronic power systems.
