TRACO POWER TES10523 DC/DC converter
The TES 1 Series 1 Watt DC/DC converters are compact, high-efficiency, isolated voltage supply modules suitable for various industrial applications. Designed in a small SMD package, they offer features like 1500 VDC isolation, unregulated output, and support for input voltages of 5, 12, and 24 VDC. Ideal for ground loop elimination, noise reduction, and voltage conversion, these converters operate reliably from -40°C to +90°C, with a 3-year warranty. Qualified for lead-free reflow soldering and available in tape and reel packaging, ensuring easy automation.
TRACO POWER TES10523 DC/DC converter Specifications:
- Input Voltage: 5, 12, 24 VDC
- Output Voltage: 3.3 V, 5 V, 9 V, 12 V, 15 V, 24 V, and combinational options
- Output Current Max: 435 mA
- Isolation Voltage: 1500 VDC
- Operating Temperature Range: -40°C to +90°C
- Efficiency: Up to 80%
- Ripple and Noise: 120 mVpp max
- Case Material: UL94V-0 rated plastic
- Weight: Single output models 1.7 g, dual output models 2.0 g
- Qualification: Lead-free reflow solder process, J-STD-020D.1, Moisture Sensitivity Level 2
- Switching Frequency: 100 kHz typ.
- Humidity: 95% RH max.
- MTBF: >2,000,000 hours
- Protection: Limited short circuit for 0.5 sec
- Isolation Resistance: >1 GΩ
- Isolation Capacitance: AO pF typical

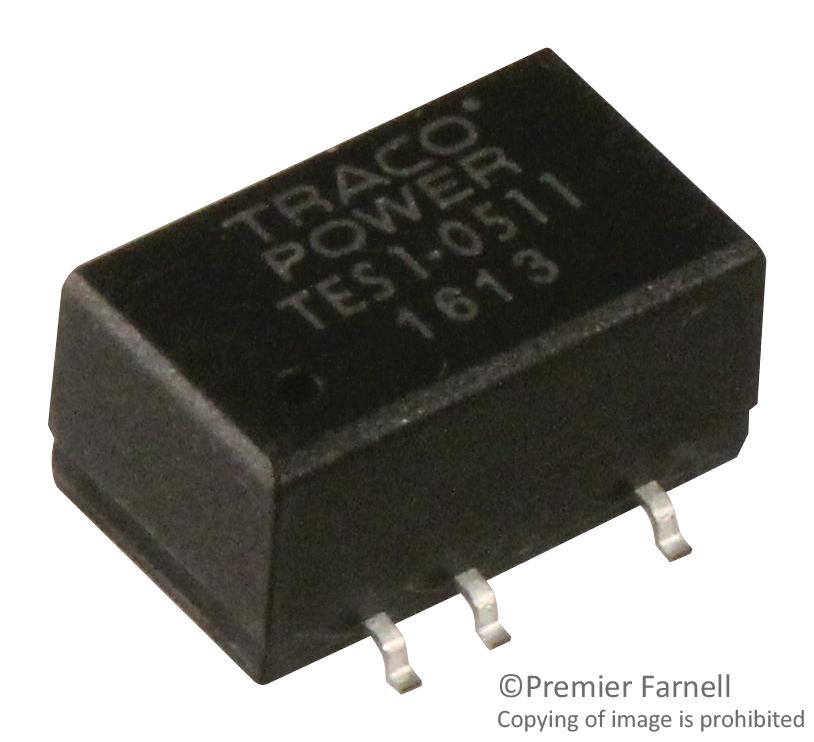

Buy the Traco Power TES 1-0512 Reliable Voltage Isolation for Industrial Applications
Get the Traco Power TES 1-0512, a compact 1W DC/DC converter designed for high reliability and efficiency. Featuring 1500 VDC isolation, stable operation from -40°C to +90°C, and suitable for industrial applications such as noise reduction and voltage conversion. Constructed with UL94V-0 rated plastic, it supports lead-free reflow soldering, making it ideal for automated manufacturing, and offers a MTBF exceeding 2 million hours for long-term performance. Order online now to secure this essential power module with a 3-year warranty.
Order your Traco Power TES 1-0512 today and ensure your projects have the dependable, compact power solution they need for robust industrial performance.
Frequently Asked Questions
Where can I buy TRACO POWER TES10523?
You can click on the BUY or RFQ button to purchase TES10523 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TES10523?
You can download the TES10523 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TES10523?
TRACO POWER
