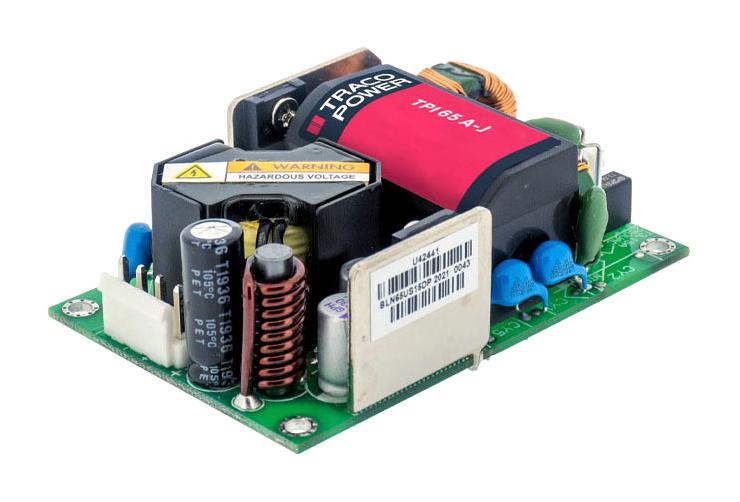

TRACO POWER TPI65112AJP Industrial Power Supply
The TPI 65A-J is a high-efficiency 65 Watt open frame power supply designed for industrial applications, featuring reinforced isolation of 3000 VAC, peak power capacity up to 140%, and compliance with ErP directives. It operates from 85-264 VAC or 120-370 VDC, offers an operating temperature range of -40°C to +85°C, and includes comprehensive EMC and safety certifications. Its compact design supports space-critical setups, with excellent thermal management, low no-load power consumption, and reliable component quality, making it ideal for automation, industrial devices, and test equipment.
TRACO POWER TPI65112AJP Industrial Power Supply Specifications:
- Output Power: 65 Watt
- Input Voltage: 85 - 264 VAC, 120 - 370 VDC
- Input Frequency: 63 Hz
- Operating Temperature Range: -40°C to +85°C
- Efficiency: Up to 93%
- Isolation Voltage: 3000 VAC
- Protection Class: II (Reinforced Insulation, Connection to PE)
- Ripple and Noise: 75 mVp-p typical (20 MHz Bandwidth)
- Maximum Output Current: 10,000 mA (5 V), 5,420 mA (12 V), 4,340 mA (15 V), 2,710 mA (24 V), 1,810 mA (36 V), 1,360 mA (48 V), 1,240 mA (53 V)
- Peak Power Function: Up to 140% for 10 seconds
- Short Circuit Protection: Continuous, automatic recovery
- Approvals: EN 62368-1, UL 62368-1, IEC 62368-1
- EMC Compliance: EN 55011/EN 55032 Class B, FCC Part 15 Class B
- Dimensions: 3 x 2 inches
- Weight: 1179 grams
- Certifications: UL Listed, CE, VDE
Buy the Buy Traco Power TPI 65A-J Series Part Number TPI65112AJP Online
Enhance your industrial setup with the Traco Power TPI 65A-J Series, a 65 Watt high-efficiency power supply designed for demanding applications. Its open frame design allows easy integration into control panels and machinery, while reinforced isolation ensures safety and durability across industrial environments. With operating temperatures from -40°C to +85°C, this power supply maintains stable performance in harsh conditions. Its peak power capacity up to 140% provides extra margin for transient loads, making it perfect for automation, test equipment, and space-critical applications. Purchase online now for fast delivery and dependable performance.
Order your Traco Power SeriesTPI 65A-J TPI65112AJP today and ensure your industrial projects benefit from reliable, high-efficiency power solutions.
Frequently Asked Questions
Where can I buy TRACO POWER TPI65112AJP?
You can click on the BUY or RFQ button to purchase TPI65112AJP from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TPI65112AJP?
You can download the TPI65112AJP datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TPI65112AJP?
TRACO POWER
