TRACO POWER THI31213 High Isolation Power Converter
The THI 3 series is a compact, high-isolation DC/DC converter with reinforced insulation, ideal for medical equipment and industrial controls. Featuring 3-watt power, multiple input voltages (5V, 12V, 24V), and high efficiency up to 64%, these fully regulated units meet stringent safety standards such as IEC/EN 60601-1 and IEC/EN 60950-1. Designed with encapsulation in a DIP-24 package, they offer reinforced insulation, low leakage current, short circuit protection, and are suitable for medical and industrial safety applications, ensuring reliable performance across operating temperatures from -40°C to +75°C.
TRACO POWER THI31213 High Isolation Power Converter Specifications:
- Input Voltage Range: 5VDC, 12VDC, 24VDC
- Output Power: 3 Watts
- Output Voltage Options: 5V, 12V, 15V
- Maximum Output Current: 600 mA
- Efficiency: Up to 64%
- Isolation Voltage: 4000 VACrms; rated for 300 Vrms work voltage
- Operating Temperature: -40°C to +75°C
- Ripple and Noise: 50 mVpk-pk at 20 MHz bandwidth
- Short Circuit Protection: Yes, automatic recovery
- Safety Standards: IEC/EN 60601-1, IEC 60950-1
- Dimension: Encapsulated DIP-24 package
- Pin Material: Copper Alloy with gold plating
- Weight: 12.4 g
- Conducted Noise: EN 55022, class A and FCC level A
- Input Filter: Pi-Filter
- Isolation Capacitance: 220 pF (each output), Input/Output 20 pF typical
- Leakage Current: 2 pA at 240 VAC
- Switching Frequency: 25-60 kHz
- Storage Temperature: -50°C to +125°C
- Humidity: Up to 95% RH non-condensing

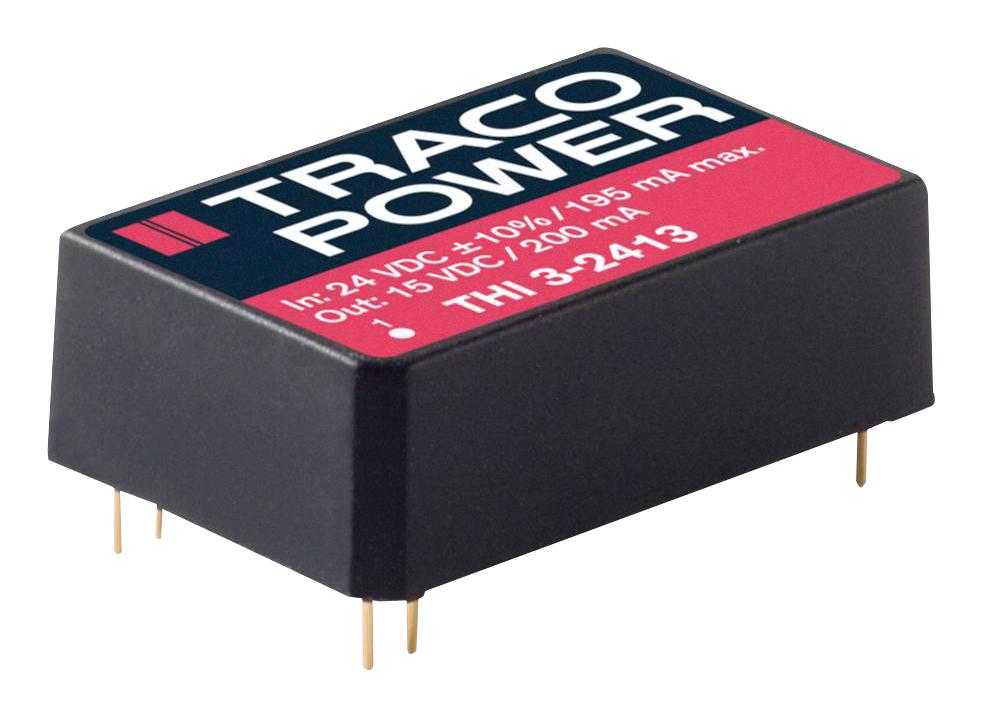

Buy the Buy TracoPower THI 3 Series 3 Watt Part Number THI 31213 Online
Purchase the TracoPower THI 3 Series 31213 today for reliable 3-watt power conversion in medical and industrial applications. Featuring reinforced insulation, high efficiency up to 64%, and compliance with international safety standards, this compact DC/DC converter is ideal for healthcare devices, industrial controls, and safety-critical equipment. Designed with a DIP-24 encapsulated package, it offers low leakage, short circuit protection, and broad temperature operation from -40°C to +75°C. Buy online now to ensure your project’s power needs are met with certified quality and safety.
Order your TracoPower THI 3 Series 31213 today and ensure your medical devices and industrial equipment operate with safe, reliable internal power conversion.
Frequently Asked Questions
Where can I buy TRACO POWER THI31213?
You can click on the BUY or RFQ button to purchase THI31213 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THI31213?
You can download the THI31213 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THI31213?
TRACO POWER
