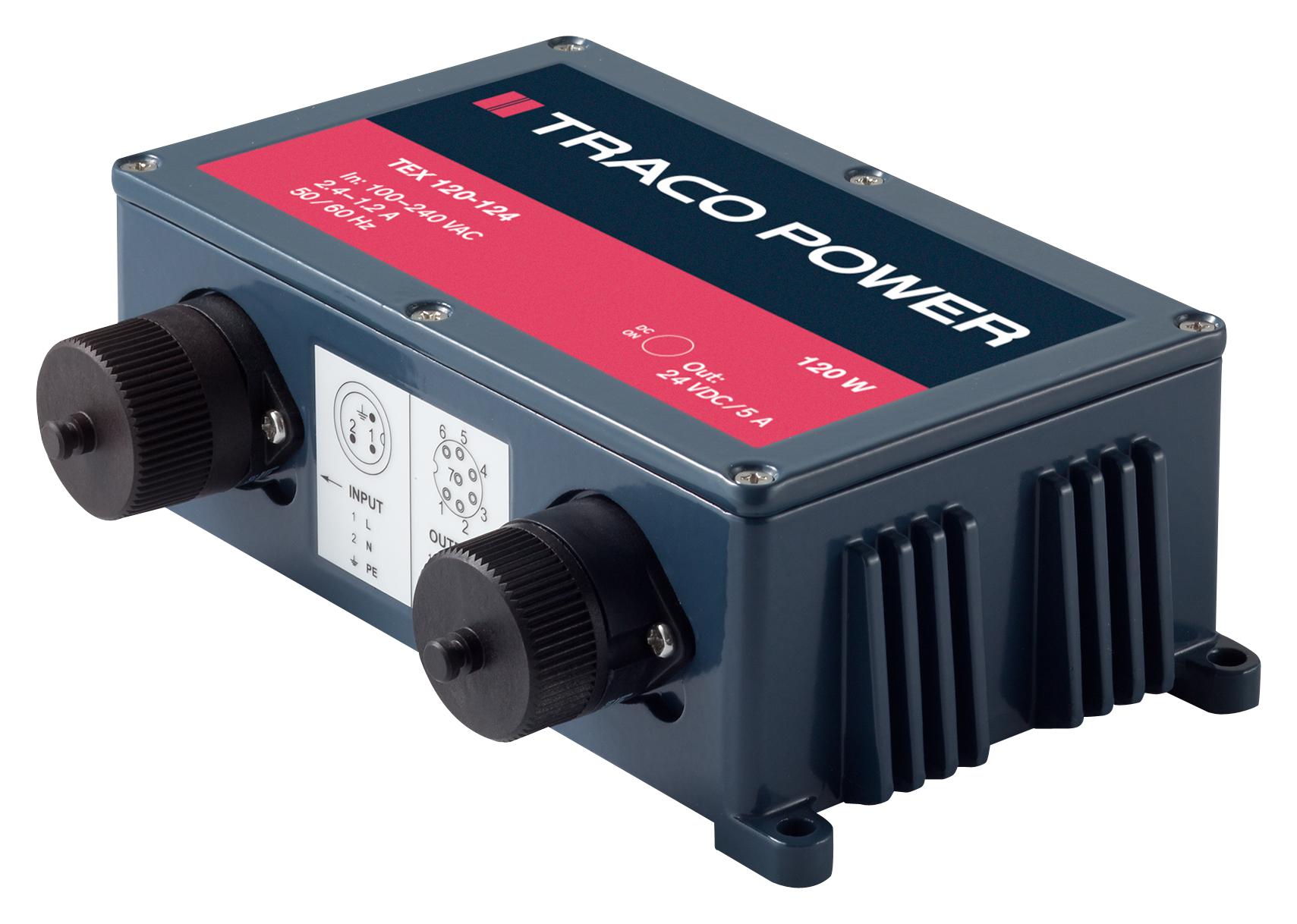

TRACO POWER TEX120124 Industrial Power Supply
The TEX 120 Series provides rugged, reliable industrial power supplies designed for harsh environments. Featuring die-cast aluminium housing with IP67 and NEMA 4X ratings, these units resist dust, water, ice, and oil. The power supplies operate across -40°C to +85°C, include adjustable output voltages, universal input 85-264 VAC, and are certified for hazardous locations including ATEX and IECEx standards. With low ripple, shockproof construction, and a 3-year warranty, they are ideal for decentralized automation in extreme conditions.
TRACO POWER TEX120124 Industrial Power Supply Specifications:
- Input voltage range: 85-264 VAC, 47-63 Hz, 1.0 A at 230 VAC, 2.0 A at 115 VAC
- Output power: 120 W, Output voltage: 12 VDC or 24 VDC (adjustable), Max current 8.0A or 5.0A
- Efficiency: 87%, Ripple and noise: <50 mVp-p, Hold-up time: >20 ms
- Operating temperature: -40°C to +85°C, Derating above 60°C by 2.0% per K
- Enclosure: Die-cast aluminium, IP67, NEMA 4X, shock and vibration proof
- Certifications: UL, CE, CB, IECEx, ATEX, RoHS, Reach, and ISO compliance
- Environmental durability: Salt spray, ice, dust, oil resistance, humidity up to 100%, MTBF >900,000 hours
Buy the TracoPower Series TEX120 Power Supply: TEX120124
Purchase the rugged industrial power supply online today and ensure dependable operation in demanding conditions. The TEX 120 Series features adjustable output voltages, high efficiency, and certification for hazardous locations. Designed with a durable die-cast aluminium housing, IP67 and NEMA 4X ratings, and shockproof construction, it withstands dust, water, ice, and oil. Ideal for decentralized automation systems, this power supply offers long-lasting durability, a 3-year warranty, and a wide operating temperature range from -40°C to +85°C. Secure your reliable power source now!
Get TracoPower TEX120124 today—built for extreme environments and reliable performance.
