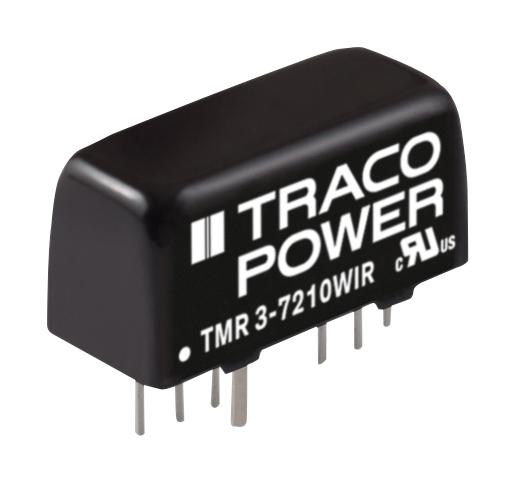

TRACO POWER TMR32413WIR DC/DC Converter
The TMR 3WIR series consists of 3 Watt, compact SIP-8 metal case DC/DC converters suitable for space-constrained applications in railway, industrial, and automation environments. Certified for EN 50155 and UL 60950-1, these converters feature wide input voltage ranges (4:1 ratio, 9-36 VDC, 18-75 VDC, 43-160 VDC), fully regulated outputs, and 3000 VDC isolation. Designed for operation up to 78°C full load and 90°C with derating, they include short circuit protection, remote On/Off, and high efficiency, making them ideal for reliable power in demanding environments.
TRACO POWER TMR32413WIR DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC, 18-75 VDC, 43-160 VDC with 4:1 ratio
- Output Voltage Options: 3.3 V, 5 V, 9 V, 15 V, 24 V, 42 VDC, and dual outputs (+5V, +12V, +15V)
- Maximum Output Current: 700 mA to 333 mA depending on model
- Efficiency: 75% to 83% depending on model
- Isolation Voltage: 3000 VDC input to output, 1500 VDC input/output to case
- Operating Temperature: -40°C to +90°C with derating above 78°C
- Ripple and Noise: 75 mVp-p max at 20 V bandwidth
- Short Circuit Protection: Continuous, automatic recovery
- Remote On/Off: Yes, controlled via 2-4 mA current through 1 kΩ resistor
- Humidity Range: 5-95% RH non-condensing
- Switching Frequency: 400 kHz typical
Buy the Traco Power TMR 3WIR – Reliable Power Supply for Industrial Applications
Purchase the Traco Power TMR 3WIR series DC/DC converter today online to enjoy reliable, high-efficiency power solutions. These compact converters feature wide input voltage ranges, full regulation, and certification for railway and industrial applications. Perfect for environments needing space-saving design with high temperature tolerance up to 90°C. Enjoy easy remote On/Off control, short circuit protection, and automatic recovery. Secure your project’s power needs with trusted quality—order now and benefit from fast delivery, warranty, and customer support tailored for your industrial and automation projects.
Order your Traco Power TMR 3WIR Series DC/DC Converter today and ensure dependable power for demanding industrial and railway systems.
