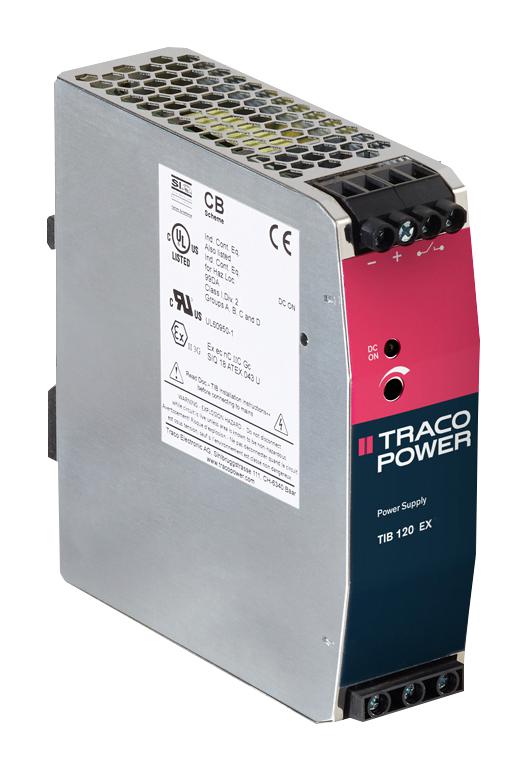

TRACO POWER TIB120124EX Industrial Power Supply
The TIB 120-EX power supply series offers 120 Watts of high-efficiency industrial power suitable for hazardous locations. With UL Hazloc Class I / Div 2 and ATEX certifications, these convection-cooled units operate in temperatures from -40°C to +70°C. Features include adjustable output voltage, back power immunity, peak power capability of 150% for 4 seconds, and high reliability with an MTBF of 1 million hours. Compact and designed for DIN rail mounting, they provide short circuit, overload protection, and radio interference suppression, ideal for demanding industrial automation applications.
TRACO POWER TIB120124EX Industrial Power Supply Specifications:
- Power Output: 120W
- Output Voltage Range: 11.8 - 150 VDC (12 V model), 23.5 - 28 VDC (24 V model), 47 - 56 VDC (48 V model)
- Output Current: 10,000 mA (12 V), 5,000 mA (24 V), 2,500 mA (48 V)
- Efficiency: Up to 94%
- Operating Temperature: -40°C to +70°C (full load up to 60°C)
- Peak Power: 150% for 4 seconds
- Protection: Short circuit, overload, back power immunity
- Certifications: UL Hazloc Class I / Div 2, ATEX, IEC 60950-1, UL 508
- Housing: Rugged metal case, DIN rail mounting, optional side-mounting
- Compliance: EMC IEC/EN 61000-6-2, IEC/EN 61000-6-3, radio interference suppression
- MTBF: 1 million hours
- Additional features: Convection cooled, adjustable output voltage, power factor up to 99%
Buy the Buy Traco Power TIB Series120-EX Power Supply Part Number TIB120124EX Online
Purchase the Traco Power TIB 120-EX power supply online today for your industrial automation and hazardous location projects. This 120W DIN rail module offers exceptional efficiency of up to 94%, adjustable voltage, and robust protection features. Designed with a rugged metal case and optional side-mounting, it ensures high reliability and excellent operation in temperatures from -40°C to +70°C. Its peak power capability of 150% for 4 seconds makes it ideal for motors and actuators, while UL and ATEX certifications guarantee compliance for hazardous environments. Order now to benefit from fast shipping and professional support.
Order your Traco Power TIB 120-EX 120 Watt power supply today and ensure reliable operation in hazardous industrial environments.
