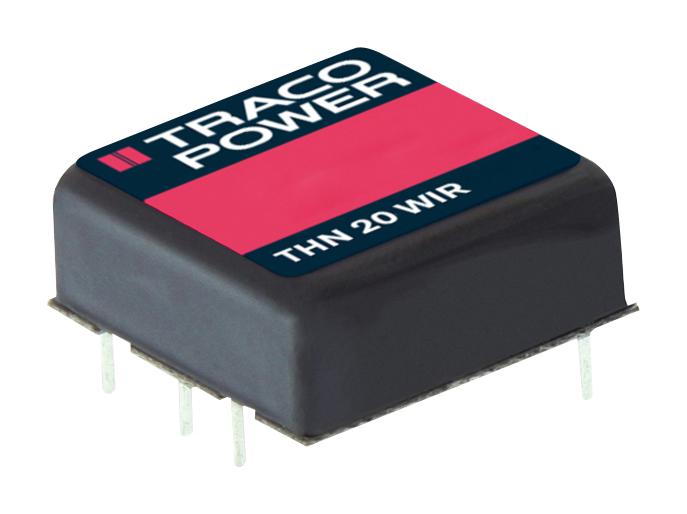

TRACO POWER THN202423WIR Industrial Power Converter
The THN 20WIR series is a rugged 20 Watt DC/DC converter in a compact 1” x 1” metal package, suitable for railway and industrial applications. It offers a wide input voltage range of 9-36 V, 18-75 V, and 36-160 VDC, with high efficiency up to 91% and an operating temperature span from -40°C to +65°C without derating. Certified for EN 50155, EN 61373, and EN 45545-2, it features overload, overvoltage, and short circuit protections, remote On/Off, and output trim functions, ideal for demanding environments demanding reliability and safety.
TRACO POWER THN202423WIR Industrial Power Converter Specifications:
- Power: 20 Watt
- Input Voltage Range: 9-36V, 18-75V, 36-160VDC
- Efficiency: Up to 91%
- Operating Temperature: -40°C to +65°C without derating
- Isolation Voltage: 3000 VDC input/output, 2250 VDC input/case, 2250 VDC output/case
- Dimensions: 1” x 1” x (height varies with model), Metal package
- Protection: Overload, overvoltage, short circuit
- Features: Remote On/Off, output trim, internal Pi filter
- Certifications: EN 50155, EN 61373, EN 45545-2, IEC 62368-1, UL 62368-1
- Switching Frequency: 270-330 kHz depending on model
- Environmental: Humidity up to 85°C, vibration MIL-STD-810F, vibration EN 61373
- Safety Standards: EN 62368-1, IEC 62368-1, UL 62368-1
- Housing Material: Copper, non-conductive UL94 V-0 rated FR4, silicone potting
- Pin Material: Copper, nickel plated, tin surface
Buy the Traco Power THN202423WIR – Reliable Power Supply for Industrial Applications
Order the Traco Power THN 20WIR series online today and ensure your system’s power needs are met with high efficiency, robust protection features, and railway-grade certifications. This compact 20-watt DC/DC converter provides a stable power source across wide input ranges, operates reliably in harsh environments from -40°C to +65°C, and features protections against overload, overvoltage, and short circuits. Easy to integrate with remote On/Off control and output trim functions, it is the perfect choice for industrial, transportation, and automation projects demanding dependable power solutions.
Buy Traco Power THN202423WIR now and experience unmatched reliability and high efficiency in demanding industrial and railway environments.
Frequently Asked Questions
Where can I buy TRACO POWER THN202423WIR?
You can click on the BUY or RFQ button to purchase THN202423WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THN202423WIR?
You can download the THN202423WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THN202423WIR?
TRACO POWER
