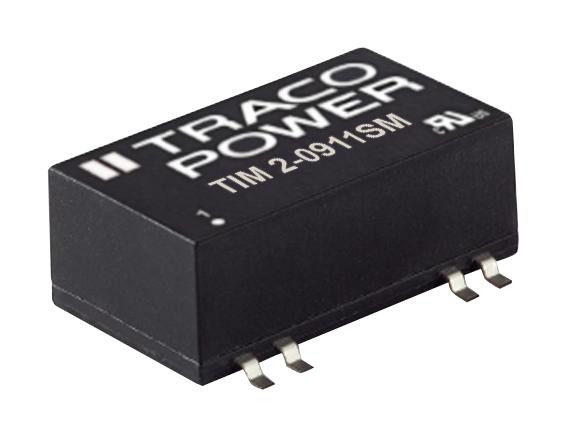

TRACO POWER TIM22415SM medical power supply
The TIM 2SM series is a compact 2 Watt DC/DC converter range with reinforced 5000 VACrms isolation suitable for medical applications. It features low leakage current below 2 pA, extended operating temperatures from -40°C to 95°C, and EMC compliance according to IEC 60601-1-2 4th edition. The converters are certified for 2XMOPP operation up to 5000 meters altitude and come with a 5-year warranty. Ideal for insulating electrical equipment from applied parts to patients, ensuring safety and reliability in medical and industrial environments.
TRACO POWER TIM22415SM medical power supply Specifications:
- Power Rating: 2 Watt
- Isolation Voltage: 5000 VAC (reinforced insulation)
- Rated Working Voltage: 250 VAC
- Leakage Current: < 2 pA
- Operating Temperature Range: -40°C to 95°C
- Efficiency: 74% to 82% depending on model
- Input Voltage Range: 3.3 VDC to 48 VDC
- Output Voltage Range: 3.3 VDC to 24 VDC
- Max Output Current: 500 mA at 3.3 V, 400 mA at 5 V, 222 mA at 9 V
- Dimensions: Compact SMD-16 package
- Certification: IEC/EN/ES 60601-1 3rd edition, IEC 60601-1-2
- EMC Compliance: IEC 60601-1-2 4th edition, EN55032 class A
- Altitude: Up to 5000 m
- MTBF: 6,809,000 hours at +25°C
- Switching Frequency: 100 kHz min.
- Protection: Overvoltage, short circuit, undervoltage shutdown
- Housing Material: Non-conductive black plastic
- Potting Material: Silicone
- Weight: 7.09 oz (201 g)
Buy the Traco Power Series TIM 2SM DC/DC Converter: TIM22415SM
Purchase the Traco Power TIM 2SM series DC/DC converter online today and ensure safe, reliable electrical insulation for medical or industrial equipment. With reinforced 5000 VAC isolation, low leakage current under 2 pA, and certified performance up to 5000 meters altitude, these compact converters are perfect for demanding environments. Their extended temperature range of -40°C to 95°C, high efficiency, and robust safety features make them ideal for critical applications where safety, performance, and reliability are paramount. Order now for fast delivery and peace of mind.
Buy Traco Power TIM22415SM now and experience unmatched reliability and high isolation performance for medical and industrial applications.
Frequently Asked Questions
Where can I buy TRACO POWER TIM22415SM?
You can click on the BUY or RFQ button to purchase TIM22415SM from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TIM22415SM?
You can download the TIM22415SM datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TIM22415SM?
TRACO POWER
