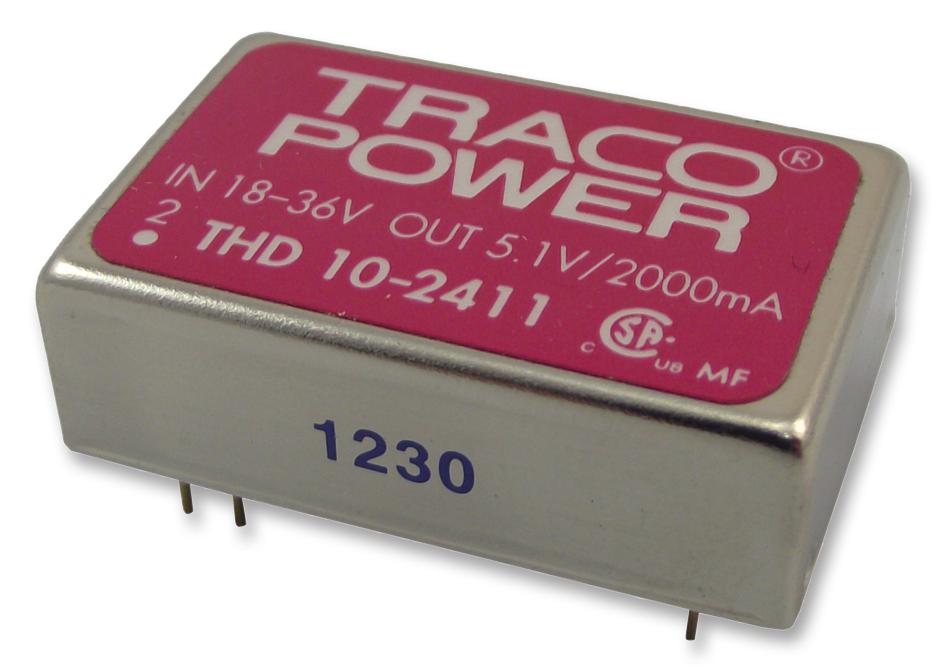

TRACO POWER THD102411 DC/DC Converter
The THD-10 Series is a compact, high-performance 10W DC/DC converter range featuring a DIP-24 package, built-in EMI filter, and overvoltage protection. Designed for industrial electronics, instrumentation, data communication, and space-limited battery-operated equipment, these converters offer excellent efficiency up to 87%, low ripple and noise, and operate with a wide input range of 2:1. Full SMD-design using ceramic capacitors ensures high reliability and long product life, meeting safety standards including UL 60950-1 and EN 55022, class A immunity, making them ideal for demanding industrial applications.
TRACO POWER THD102411 DC/DC Converter Specifications:
- Input voltage range: 9-36 VDC or 18-75 VDC, with start-up voltage at 9 V and 18 V respectively
- Output voltage options: 3.3 V, 5.1 V, 9-18 V, 12 V, 15 V, 2.5 V, 36-75 V, with currents from 330 mA to 3 A
- Efficiency: Up to 88%
- Ripple and noise: 85 mVpk-pk max.
- Operating temperature: -40°C to +71°C
- Isolation voltage: 1500 VDC
- Dimensions: 31.8 mm x 22.86 mm x 15.24 mm, weight: 173 g
- Full load regulation: 1.0%, line regulation: 1.2%, with a temperature coefficient of 0.02%/K
- Short circuit protection: Automatic, indefinite, with built-in EMI filter per EN 55022, class A
- Switching frequency: 100 kHz typical, with full safety certifications including UL and EN 60950-1
Buy the TracoPower Series THD-10 DC/DC Converter: THD102411
Order the TracoPower THD102411 online today to benefit from a high-efficiency 10W isolated DC/DC converter designed for industrial and communication systems. Featuring a DIP-24 package, built-in EMI filter, overvoltage protection, and wide input voltage range, this converter ensures reliable operation even in demanding environments. Its low ripple, noise, and high efficiency—up to 88%—combined with robust safety standards and long lifetime make it the perfect choice for space-constrained power applications in automation, instrumentation, and data communication sectors. Purchase now to ensure dependable power delivery!
Buy TracoPower THD102411 now and experience unmatched reliability and performance for industrial and communication power applications.
Frequently Asked Questions
Where can I buy TRACO POWER THD102411?
You can click on the BUY or RFQ button to purchase THD102411 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THD102411?
You can download the THD102411 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THD102411?
TRACO POWER
