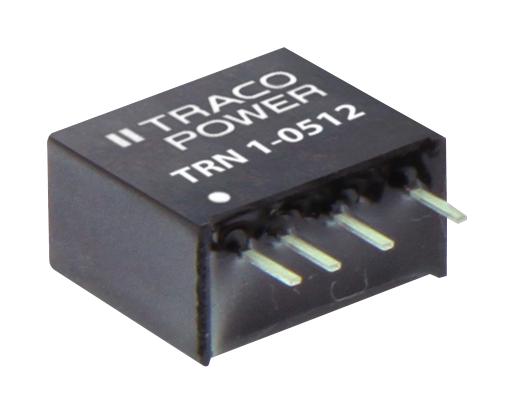

TRACO POWER TRN12413 DC/DC Converter
The TRACO POWER TRN 1 Series offers a compact 1 Watt fully regulated DC/DC converter with a SIP package measuring 11.9 x 7.7 x 11.0 mm. It features high performance, wide input voltage ranges from 4.5-13.2, 9-18, 18-36, 36-75 VDC, and fully isolated outputs with 1600 VDC I/O isolation. Operating without derating up to +90°C, it provides short circuit protection, high efficiency, and compliance with UL 62368-1 and UL 60950-1 standards. The converter is ideal for space-constrained applications needing reliable, high-quality power conversion.
TRACO POWER TRN12413 DC/DC Converter Specifications:
- Power: 1 Watt
- Input Voltage Range: 4.5-13.2 VDC, 9-18 VDC, 18-36 VDC, 36-75 VDC
- Output Voltage Options: 3.3 V, 5 V, 12 V, 15 V, 24 V, 36-75 V
- Output Current Max: 300 mA, 200-90 mA, depending on model
- Isolation Voltage: 1600 VDC
- Operating Temperature Range: -40°C to +90°C without derating
- Efficiency: up to 83%
- Dimensions: 11.9 x 7.7 x 11.0 mm
- Protection: Short circuit protection, automatic recovery
- Compliance: UL 62368-1, UL 60950-1
- Safety & EMC: Meets IEC/EN standards, conducted noise class A/B
- Reliability: MTBF approx. 7,400,000 hours
- Soldering Temp: 260°C for 6 seconds
Buy the Buy Traco Power DC/DC Converter Part Number TRN12413 Online
Purchase the Traco Power TRN12413 compact DC/DC converter online today. Featuring wide input voltage options up to 75 VDC, high isolation of 1600 VDC, and a small footprint of 11.9 x 7.7 x 11.0 mm, this converter provides reliable power regulation with short circuit protection and efficiency up to 83%. Designed for demanding environments up to +90°C, it complies with UL 62368-1 and UL 60950-1. Perfect for space-sensitive electronic projects requiring durable, high-performance power solutions, order now for fast delivery.
Get Traco Power TRN12413 today—built for high efficiency and reliable power conversion in space-limited applications.
Frequently Asked Questions
Where can I buy TRACO POWER TRN12413?
You can click on the BUY or RFQ button to purchase TRN12413 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TRN12413?
You can download the TRN12413 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TRN12413?
TRACO POWER
