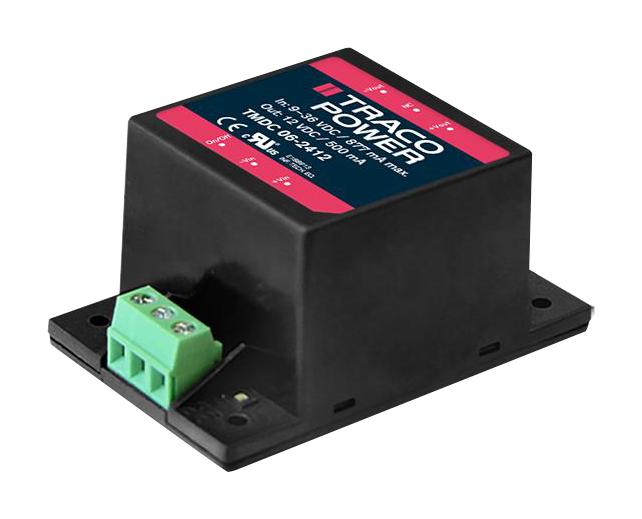

TRACO POWER TMDC064818 Industrial DC-DC Converter
The TMDC 06 series is a compact, fully encapsulated 6-watt industrial DC-DC converter designed for harsh environments. It offers an ultra-wide input voltage range of 9-36 VDC or 18-75 VDC, with excellent EMC compliance (EN 55032, EN 55035) and safety certifications (UL 62368-1). The module provides overload, undervoltage, and short circuit protection, along with DC-OK and remote On/Off functions. Its robust plastic enclosure withstands temperatures from -40°C to +80°C without derating, making it ideal for industrial automation, instrumentation, and control systems requiring high reliability and isolation up to 3000 VDC.
TRACO POWER TMDC064818 Industrial DC-DC Converter Specifications:
- Input Voltage Range: 9-36 VDC or 18-75 VDC
- Output Power: 6 Watt
- Output Voltage Options: 5.1 V, 12 V, 15 V, 24 V, -12 V, -15 V, -24 V
- Output Current: Up to 1,200 mA depending on model
- Efficiency: Up to 85%
- Isolation Voltage: 3000 VDC
- Operating Temperature: -40°C to +80°C without derating
- Dimensions: 2.09 in x 1.34 in x 1.04 in (53 mm x 34 mm x 26.5 mm)
- Encapsulation: Fully sealed plastic housing
- Protection: Overload, undervoltage, short circuit
- EMC Compliance: EN 55032 class A, EN 55035
- Certifications: UL 62368-1, IEC 62368-1
- Remote Control: Yes (Remote On/Off)
- Environmental: Humidity up to 95%, pollution degree 3
- Switching Frequency: 370 kHz typ.
- Start-up Time: 30ms typ.
- Ripple & Noise: 75 mVp-p (varies by model)
Buy the Traco Power Series TMDC DC-DC Converter: TMDC 06-4818
Order the Traco Power TMDC 06-4818 online today and ensure your industrial projects benefit from a high-reliability, fully encapsulated 6-watt DC-DC converter. Its wide input voltage range, high efficiency, and reinforced isolation make it suitable for harsh environments requiring robust performance. Equipped with EMC filters, overload protection, and remote control functions, this module guarantees stable power delivery for automation, instrumentation, and control systems. Make your purchase now and enjoy fast delivery, secure payment, and technical support to optimize your industrial applications.
Buy Traco Power TMDC 06-4818 now and experience unmatched reliability and industrial-grade performance in harsh environments.
