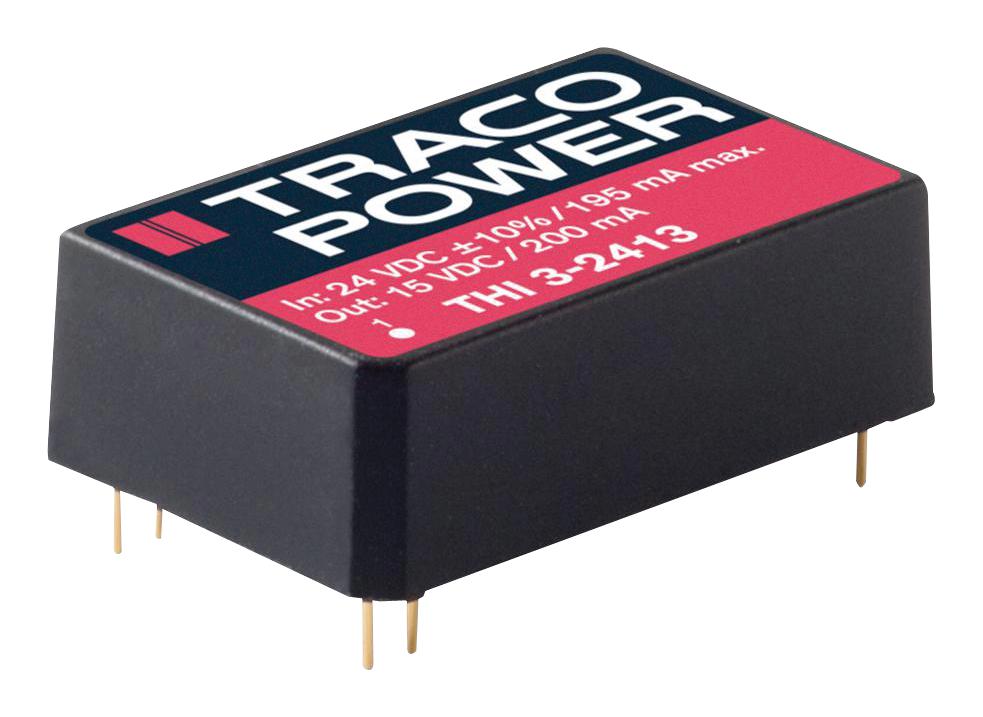

TRACO POWER THI30513 Medical DC/DC Converter
The THI 3 series offers high isolation DC/DC converters with reinforced insulation, ideal for medical and industrial applications. These 3-Watt modules feature fully regulated output, low leakage current, and an encapsulated DIP-24 package, complying with safety standards like IEC/EN 60601-1 and IEC 60950-1. They support input voltages of 5V, 12V, and 24V, with outputs up to 15V. Their features include short circuit protection, low noise, wide temperature range, and high efficiency, making them perfect for medical instrumentation and industrial controls requiring certified isolation solutions.
TRACO POWER THI30513 Medical DC/DC Converter Specifications:
- Input Voltage Range: 5V, 12V, 24V
- Max Output Current: 600 mA
- Efficiency: Up to 64%
- Isolation Voltage: 4000 VACrms
- Isolation Capacitance: 220 pF (each output)
- Operating Temperature: -40°C to +75°C
- Power Dissipation: 3 Watts
- Ripple and Noise: Max 50 mVpk-pk
- Voltage Regulation: 0.5%
- Short Circuit Protection: Yes, automatic recovery
- Surge Voltage: 75V, 15V, 30V depending on model
- Fuse Rating: 0.5A to 2A, depending on input
- Operating Altitude: Up to 4000m
- Switching Frequency: 25-60 kHz
- Compliance: IEC 60601-1, IEC 60950-1, RoHS
- Enclosure Material: UL 94V-0 rated plastic
- Connectors: Copper alloy, gold plated
- Soldering Temp: Max 260°C for 10 sec
- Weight: 12.4g
Buy the Traco Power Series THI 3 Medical DC/DC Converter: THI30513
Purchase the Traco Power THI 3 series medical DC/DC converter online today. This 3-watt module offers reinforced insulation, low noise, high efficiency, and complies with stringent safety standards such as IEC 60601-1. Its compact design and robust protection features make it ideal for healthcare devices, industrial controls, and instrumentation requiring certified isolation. With a wide temperature range, automatic short circuit recovery, and reliable performance, order now for a safe, durable power solution tailored to demanding medical and industrial applications.
Get Traco Power THI30513 today—built for medical safety and reliable industrial control applications.
Frequently Asked Questions
Where can I buy TRACO POWER THI30513?
You can click on the BUY or RFQ button to purchase THI30513 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THI30513?
You can download the THI30513 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THI30513?
TRACO POWER
