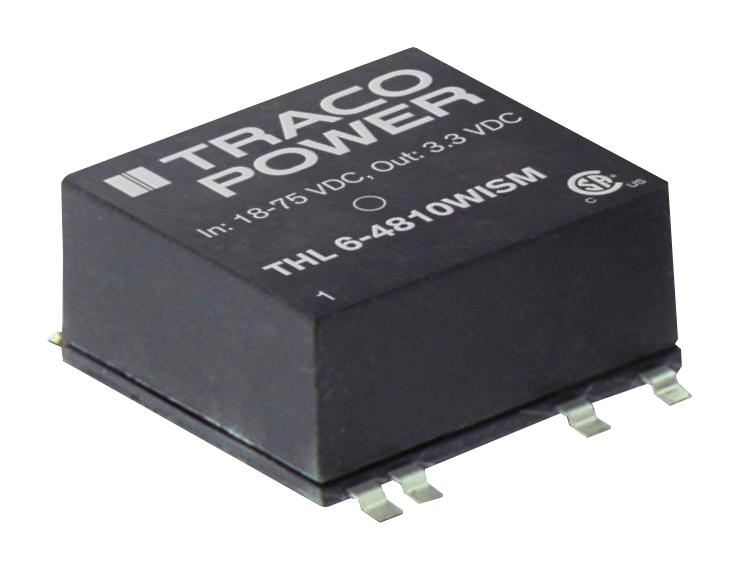

TRACO POWER THL64810WISM DC/DC Converter
The THL 6WISM series from TracoPower includes compact, high-efficiency DC/DC converters designed for industrial, telecom, and instrumentation applications. These 6W SMD units feature a fully regulated output, ultra-wide 4:1 input voltage range, and internal EN55022 Class A filtering, simplifying design integration. They offer remote on/off, short circuit protection, and a robust operating temperature from -40°C to +75°C. With various output voltages like 3.3V, 5V, 12V, 15V, and 24V, and safety certifications UL and IEC, these converters assure reliable power solutions for demanding environments. Dimensions are 20.3mm x 10.5mm x 22mm, with a 3-year warranty.
TRACO POWER THL64810WISM DC/DC Converter Specifications:
- Power Rating: 6W
- Input Voltage Range: 9-36 VDC / 18-75 VDC, ultra-wide 4:1 ratio
- Output Voltages: 3.3V, 5V, 12V, 15V, 24V, ±5V, ±12V, ±15V
- Maximum Output Current: 1450mA to 600mA depending on model
- Efficiency: up to 83%
- Operating Temperature: -40°C to +75°C
- Isolation Voltage: 1500 VDC
- Dimensions: 20.3mm x 10.5mm x 22mm
- Weight: 78g
- Cooling: Convection cooled at 50 LFM
- Safety Standards: UL 60950-1, IEC 60950-1
- Switching Frequency: 330 kHz
- Ripple and Noise: 100 mVp-p max.
- Short Circuit Protection: Yes, automatic recovery
- Case Material: Non-conductive UL94V-0 rated plastic
- Lead Material: Phosphor bronze
- Reliability: >350,000 hours MTBF
- Moisture Level: 95% non-condensing
Buy the Buy TracoPower THL64810WISM Part Number 64810WISM Online
Purchase the TracoPower THL64810WISM today for a dependable and compact power conversion solution. This 6-watt converter provides regulated output voltages, an ultra-wide input range, internal filtering conforming to EN55022 Class A, and a robust operating temperature from -40°C to +75°C. Its small form factor of 20.3mm x 10.5mm x 22mm makes it ideal for space-constrained applications in industrial, telecom, and instrumentation fields. With safety certifications UL and IEC, plus a 3-year warranty, it guarantees high performance, safety, and long-term reliability in critical environments.
Get TracoPower THL64810WISM today—designed for reliable industrial power with compact size and high efficiency.
Frequently Asked Questions
Where can I buy TRACO POWER THL64810WISM?
You can click on the BUY or RFQ button to purchase THL64810WISM from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THL64810WISM?
You can download the THL64810WISM datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THL64810WISM?
TRACO POWER
