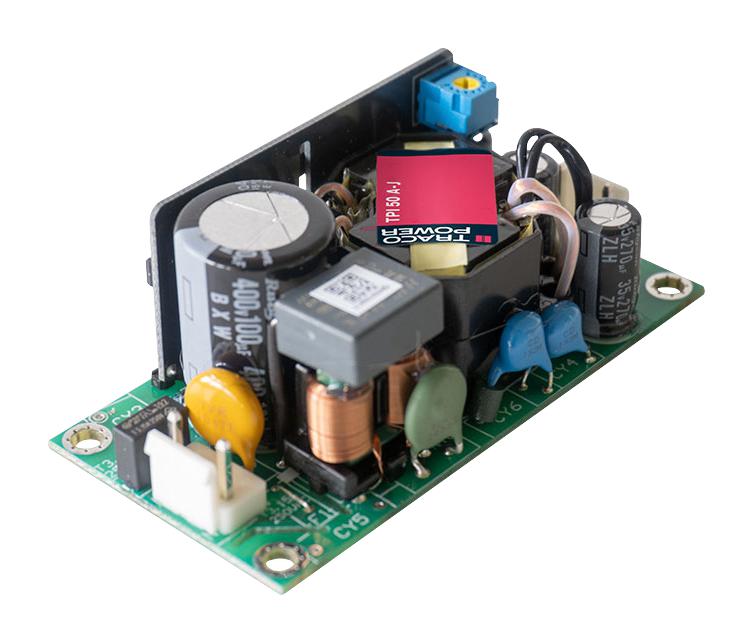

TRACO POWER TPI50112AJ Industrial Power Supply
The TPI 50A-J is a compact 50 Watt open-frame industrial power supply with reinforced isolation and high efficiency up to 93%. It supports an operating temperature range of -40°C to +85°C, features peak power up to 140%, and complies with UL 62368-1 and IEC 62368-1 safety standards. Designed for automation and demanding industrial applications, it delivers stable output voltages with adjustable regulation, low ripple, and noise. Its robust construction and thermal management ensure long-term reliability in space-critical environments.
TRACO POWER TPI50112AJ Industrial Power Supply Specifications:
- Power Rating: 50 W
- Input Voltage Range: 85 - 264 VAC, 120 - 370 VDC (no certification)
- Output Voltages: 5 V, 12 V, 15 V, 24 V, 36 V, 48 V (adjustable ±10%)
- Output Current: 8,000 to 11,045 mA depending on model
- Efficiency: Up to 93%
- Operating Temperature Range: -40°C to +85°C
- Isolation Voltage: 3000 VAC input to output
- Peak Power Capability: 140% for up to 5 seconds
- Ripple and Noise: 100-150 mVp-p depending on model
- Short Circuit Protection: Continuous, auto-recovery
- Overvoltage Protection: 115-135% of nominal output voltage
- Dimensions: Approx. 3" x 1.5" x 0.75"
- Certifications: UL, IEC, EN 62368-1
- Housing Type: Open Frame
- Mounting: Chassis Mount
- Weight: 78 g
Buy the Traco Power Series TPI 50A-J Power Supply: TPI50112AJ
Purchase the Traco Power TPI 50A-J series power supply online today and ensure your industrial devices operate reliably with high efficiency, reinforced insulation, and peak power support. Perfect for automation, test equipment, and space-critical environments, this compact unit offers excellent thermal management, wide input voltage range, and compliance with safety standards. Secure your supply today and benefit from dependable operation, low ripple, and a 3-year warranty, making it an ideal choice for demanding industrial needs.
Buy Traco Power TPI 50A-J series power supply now and experience unmatched reliability and performance in industrial applications.
Frequently Asked Questions
Where can I buy TRACO POWER TPI50112AJ?
You can click on the BUY or RFQ button to purchase TPI50112AJ from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TPI50112AJ?
You can download the TPI50112AJ datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TPI50112AJ?
TRACO POWER
