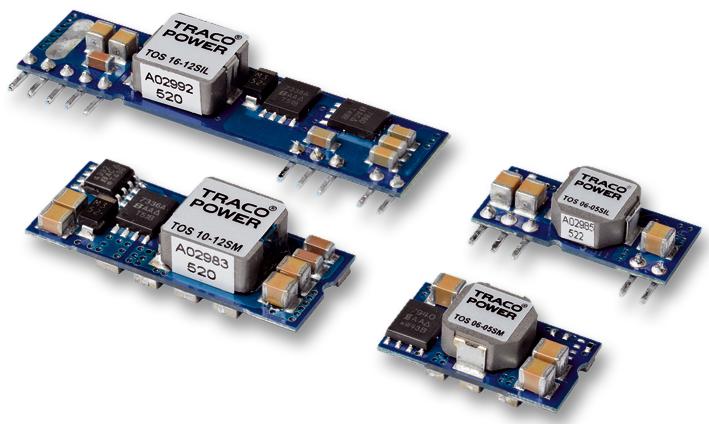

TRACO POWER TOS0605SIL PoL DC/DC Converter Module
The TOS series from Traco Power offers high-performance, high-efficiency point-of-load DC/DC converters suitable for industrial and embedded applications. These modules deliver up to 30A output current with adjustable output voltages from 0.75V to 5.5V. Featuring a compact, open-frame design available in SMT and SIP packages, they operate over a wide voltage range of 2.4V to 14V and ensure minimal derating at temperatures from -40°C to +85°C. They incorporate remote On/Off, under-voltage lockout, and over-temperature protections, making them ideal for space-constrained, demanding environments requiring reliable power regulation.
TRACO POWER TOS0605SIL PoL DC/DC Converter Module Specifications:
- Input Voltage Range: 2.4 to 5.5 VDC or 8.3 to 14 VDC
- Output Voltage Range: 0.75 VDC to 5.5 VDC, adjustable via external resistor
- Maximum Output Current: 30A
- Efficiency: Up to 96%
- Operating Temperature: -40°C to +85°C
- Remote On/Off control
- Dimensions: Small footprint with SMT or SIP packages
- Protection Features: Under voltage lockout, over temperature, over current
- Switching Frequency: 300 kHz typ.
- Weight: 2.8 g (6A models), 6 g (10A/16A models)
Buy the Traco Power Series TOS DC/DC Converter: TOS0605SIL
Enhance your power management system with the Traco Power TOS series PoL DC/DC converters. These high-performance modules provide up to 30A current with adjustable output voltages from 0.75V to 5.5V, featuring an ultra-compact design suitable for space-critical applications. They boast efficiencies up to 96%, ensuring minimal power loss and heat. Equipped with protections like over-temperature, over-current, and remote On/Off, they are ideal for demanding industrial, medical, and embedded systems where reliable and efficient power regulation is essential.
Buy Traco Power TOS0605SIL now and experience unmatched reliability and performance in compact, high-efficiency power conversion modules.
Frequently Asked Questions
Where can I buy TRACO POWER TOS0605SIL?
You can click on the BUY or RFQ button to purchase TOS0605SIL from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TOS0605SIL?
You can download the TOS0605SIL datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TOS0605SIL?
TRACO POWER
