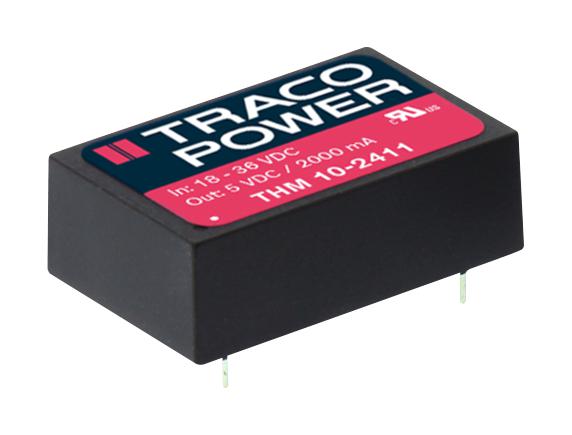

TRACO POWER THM102411 Medical Power Converter
The THM 10WI Series encompasses compact 10 Watt medical-grade DC/DC converters housed in DIP-24 plastic cases. These converters feature an ultra-wide 4:1 input voltage range, reinforced 5000 VACrms isolation, low leakage current below 2 μA, and operate reliably from -40°C to +90°C. Certified for IEC/EN/ES 60601-1 3rd edition with 2 x MOPP, they include safety, EMC compliance, and a 5-year warranty. Ideal for medical, transportation, and industrial applications requiring high efficiency, wide temp range, and reliable isolation.
TRACO POWER THM102411 Medical Power Converter Specifications:
- Input Voltage Range: 3.3 VDC to 36 VDC depending on model
- Output Voltage Options: 3.3 V, 5 V, 12 V, 15 V, 24 V, 36 V
- Output Current: Up to 2.5 A depending on model
- Efficiency: Up to 89%
- Isolation Voltage: 5000 VACrms
- Leakage Current: < 2 μA
- Operating Temperature: -40°C to +90°C (derating above 75°C known)
- Vibration/Shock Resistance: According to MIL-STD-810F
- Certifications: IEC/EN/ES 60601-1 3rd edition, 2 x MOPP, IEC 60601-1-2, RoHS compliant
- Dimensions: In accordance with DIP-24 package, compact plastic enclosure
- Starting Voltage: 4 VDC to 18 VDC (depending on model)
- Peak Surge Voltage: 60 V max.
- Power Dissipation: 10 W rated, high efficiency
Buy the Buy Traco Power THM 10WI Medical Power Converter Part Number THM102411
Order the Traco Power THM 10WI Series, a 10 Watt medical-grade DC/DC converter with reinforced 5000 VAC isolation, ultra-wide input range, and low leakage current. Engineered for demanding applications, it features up to 89% efficiency, operation from -40°C to +90°C, and compliance with IEC/EN/ES 60601-1 standards, including 2 x MOPP. Its compact DIP-24 plastic package, reliability, and advanced safety make it ideal for medical, transportation, and industrial use—order online today for fast delivery and trusted quality.
Buy Traco Power THM 10WI now and experience unmatched reliability, efficient operation, and medical safety in your industrial or healthcare project.
Frequently Asked Questions
Where can I buy TRACO POWER THM102411?
You can click on the BUY or RFQ button to purchase THM102411 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THM102411?
You can download the THM102411 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THM102411?
TRACO POWER
