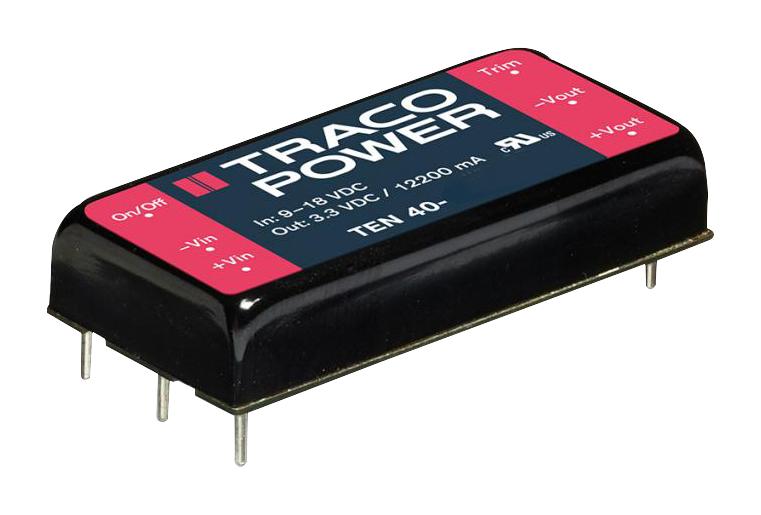

TRACO POWER TEN404825E DC/DC Converter
The TEN 40E Series is a compact 40-watt DC/DC power converter designed for industrial applications, offering high efficiency up to 93%, wide input voltage ranges, and excellent temperature operational range from -40 to +85°C. Housed in a durable 2" x 1" metal package with a 6-sided shield, it features remote on/off, overcurrent, overvoltage, and overtemperature protection, along with 1600 VDC I/O isolation. Certified under IEC/EN/UL 62368-1 standards, this series ensures reliable performance from -40°C to +70°C without derating, making it ideal for demanding industrial environments.
TRACO POWER TEN404825E DC/DC Converter Specifications:
- Power: 40 Watts
- Input Voltage Range: 9-18 VDC, 18-36 VDC, 36-75 VDC
- Efficiency: Up to 93%
- Operating Temperature: -40°C to +85°C (Natural convection) with derating above 70°C
- Isolation Voltage: 1600 VDC input/output
- Protection: Short circuit, overvoltage, overtemperature
- Voltage Regulation Accuracy: ±1%
- Ripple and Noise: 75 mVp-p (20 MHz bandwidth) for 24 Vout models
- Dimensions: 2" x 1" x 0.4" (50.8 x 25.4 x 10.2 mm)
- Housing: Metal, shielded 6-side
- Certifications: IEC 62368-1, IEC 62368-1, UL 62368-1
- Remote On/Off and Trim functions included
- Input Current: 10-20 mA depending on model at no load
- Surge Voltage: 15-100 VDC depending on input voltage
- Start-up Time: 30 ms typical
- Isolation Resistance: 1 GΩ at 500 VDC
Buy the Traco Power Series TEN 40E DC/DC Converter: TEN404825E
Get the Traco Power TEN 40E series, a reliable 40-watt DC/DC converter ideal for industrial environments. It features high efficiency up to 93%, wide input voltage ranges from 9 to 75 VDC, and comprehensive protection including overvoltage, overcurrent, and overtemperature. With a rugged metal housing, 1600 VDC isolation, and the ability to operate from -40°C to +85°C, this converter delivers stable performance and durability. Perfect for demanding industrial applications requiring certified safety and high operational reliability.
Buy Traco Power TEN404825E now and experience unmatched reliability and performance with high efficiency and advanced protection features.
Frequently Asked Questions
Where can I buy TRACO POWER TEN404825E?
You can click on the BUY or RFQ button to purchase TEN404825E from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN404825E?
You can download the TEN404825E datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN404825E?
TRACO POWER
