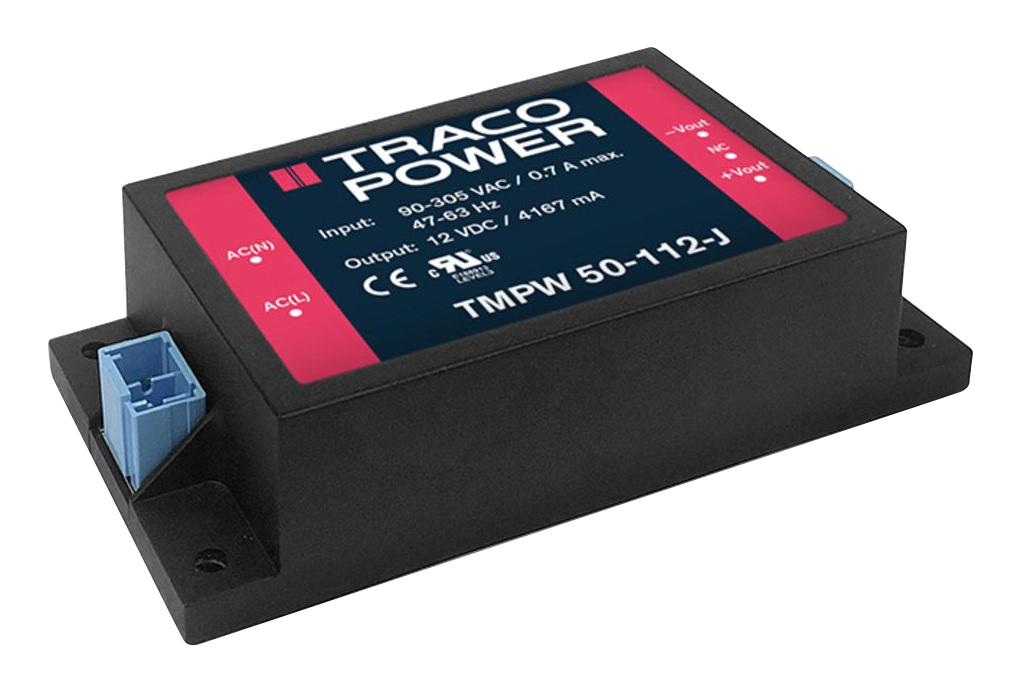

TRACO POWER TMPW50124J Power Supply Module
The TMPW 50-J series is a 50-watt AC/DC power supply designed for industrial and building automation applications. It features a compact plastic case measuring 3.81" x 1.85" with an extended input voltage range of 90-305 VAC, suitable for heavy industrial environments. The power supply offers high efficiency up to 89%, a wide operating temperature range of -40°C to +70°C, and 4000 VAC isolation voltage. It complies with safety standards including UL 62368-1 and EN 60335-1, and incorporates an internal EMC filter, making it suitable for space-constrained modern electronic systems.
TRACO POWER TMPW50124J Power Supply Module Specifications:
- Input Voltage: 90-305 VAC, 100-250 VDC
- Input Frequency: 47-63 Hz
- Output Power: 50W
- Output Voltage: 24 VDC
- Output Current: 2,083 mA
- Efficiency: Up to 89%
- Operating Temperature: -40°C to +70°C
- Isolation Voltage: 4000 VAC
- Dimensions: 3.81" x 1.85" x 1.22"
- Protection: Class II (Reinforced Insulation)
- Ripple and Noise: 240 mVp-p (24V model)
- Safety Certifications: UL 62368-1, EN 60335-1
- Standby Power: <0.1W
- Protection Class: II
- EMC Compliance: EN 55032 Class B
- Mechanical: Plastic housing UL 94 V-0 rated
- Temperature Range: -40°C to +70°C
Buy the Traco Power Series TMPW 50-J Power Supply: 50 Watt AC/DC Module
Purchase the Traco Power TMPW 50-J series online today and secure a high-efficiency 50-watt power supply designed for demanding industrial and building automation applications. Its compact plastic case measures just 3.81" x 1.85", making it ideal for space-constrained environments. With an input voltage range of 90-305 VAC, high isolation voltage of 4000 VAC, and an operating temperature from -40°C to +70°C, it offers reliable performance across a broad range of conditions. Certified under UL 62368-1 and EN 60335-1, it ensures safety and compliance for modern electronic systems.
Buy Traco Power TMPW 50-J now and experience unmatched reliability and performance with high efficiency and space-saving design for industrial and automation needs.
