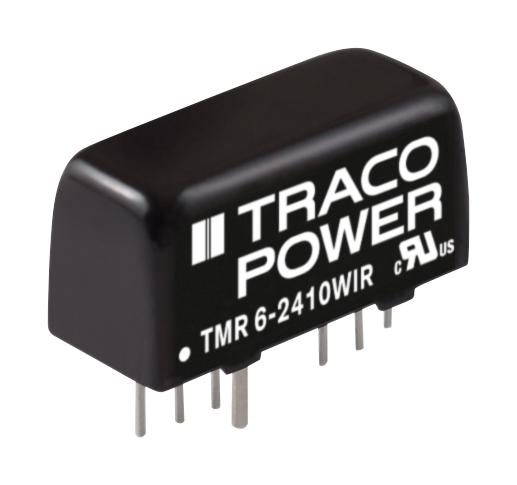

TRACO POWER TMR62415WIR DC/DC Converter
The TMR 6WIR series from Traco Power features 6 Watt DC/DC converters in a compact SIP-8 metal case, suitable for space-constrained applications with wide input ranges (4:1) and fully regulated outputs. These converters operate from -40°C to +80°C, with EN 50155 railway certification, UL 60950-1 safety approval, and 3000 VDC input-to-output isolation. They include overload and short circuit protection, remote On/Off, and deliver high efficiency up to 88%. Ideal for industrial, transportation, and embedded system applications where reliability and small size are critical.
TRACO POWER TMR62415WIR DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC or 18-75 VDC, with 4:1 wide input ratio
- Output Voltage Options: 3.3 V, 5 V, 9 V, 15 V, 24 V, 42 V, 48 V, +5 V, +12 V, +15 V
- Maximum Output Current: 1500 mA to 600 mA depending on model
- Efficiency: Up to 88% depending on output voltage
- Operating Temperature Range: -40°C to +80°C, derating above 60°C at 2.5%/K
- Isolation Voltage: 3000 VDC input to output, 1500 VDC input/output to case
- Protection: Overload, short circuit, and automatic recovery
- Switching Frequency: Approximately 580 kHz
- Physical Case Material: Copper, potting silicone (UL94 V-0)
- Dimensions: Compact SIP-8 package, weight approx 5.9 g
- Certifications: EN 50155, UL 60950-1, RoHS, REACH compliant
- EMC: Meets EN 56011, EN 55032 Class A or B, with external filters
Buy the Buy Traco Power TMR62415WIR Part Number TMR62415WIR Online
Purchase the Traco Power TMR62415WIR online today for reliable, compact power conversion with wide input range and high efficiency. Designed for demanding industrial and railway environments, this 6-watt converter features EN 50155 certification, robust safety and isolation, and automatic overload protection. Its small SIP-8 metal case fits easily into space-limited systems. Whether for transport, automation, or industrial equipment, this power module ensures stable performance across temperature ranges from -40°C to +80°C, making it an essential component for durable and efficient power management in critical applications.
Get Traco Power TMR62415WIR today—compact, high-efficiency power supply ideal for railway and industrial applications.
Frequently Asked Questions
Where can I buy TRACO POWER TMR62415WIR?
You can click on the BUY or RFQ button to purchase TMR62415WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMR62415WIR?
You can download the TMR62415WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMR62415WIR?
TRACO POWER
