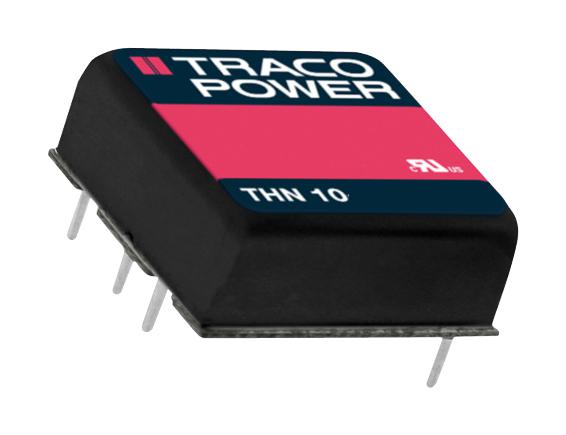

TRACO POWER THN104825WIR Railway DC/DC Converter
The THN 10WIR series comprises rugged, high-efficiency 10 Watt DC/DC converters designed for demanding environments, including railway and transportation systems. Encased in a compact 1” x 1” metal package, these converters feature a broad 4:1 input voltage range of 9-36 VDC, 18-75 VDC, and 36-160 VDC. They meet standards EN 50155, EN 61373, and EN 45545-2, providing safe operation from -40°C to +80°C without derating. Built-in protections include overload, overvoltage, short-circuit, and remote on/off, with efficiencies up to 90% and 3000 VDC I/O-isolation, making them suitable for railway and industrial apps.
TRACO POWER THN104825WIR Railway DC/DC Converter Specifications:
- Input Voltage: 9-36 VDC, 18-75 VDC, 36-160 VDC
- Output Power: 10 Watts
- Output Voltages: 3.3V, 5V, 12V, 15V, 24V with various models
- Efficiency: Up to 90%
- Isolation: 3000 VDC input to output
- Operating Temperature: -40°C to +80°C without derating
- Input Current: 6-10 mA depending on model
- Surge Voltage: 60VDC to 185VDC depending on input voltage
- Protection: Overload, overvoltage, short circuit
- Remote On/Off: Yes, controlled via voltage
- Ripple & Noise: 75mVp-p (typ.)
- Certifications: EN 50155, EN 61373, EN 45545-2, IEC 62368-1, UL 62368-1
- Housing Material: Copper, with epoxy potting
- Vibration & Shock Resistance: MIL-STD-810F, EN 61373
Buy the Buy Traco Power DC/DC Railway Converter Part Number THN104825WIR Online
Get the Traco Power THN 10WIR series railway DC/DC converter online today. This 10W converter offers high efficiency up to 90%, broad input voltage range, and robust protections. Designed to operate reliably in harsh environments, including railway and transportation settings, it features an industrial-grade compact 1” x 1” metal package. With approvals for EN 50155, EN 61373, and EN 45545-2 standards, it ensures safety, durability, and compliance. Buy now and benefit from quick delivery, technical support, and a 3-year product warranty for your transportation and industrial projects.
Order your Traco Power SeriesTHN 10WIR 10 Watt rugged converter today and ensure reliable performance in demanding railway and industrial applications.
Frequently Asked Questions
Where can I buy TRACO POWER THN104825WIR?
You can click on the BUY or RFQ button to purchase THN104825WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THN104825WIR?
You can download the THN104825WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THN104825WIR?
TRACO POWER
