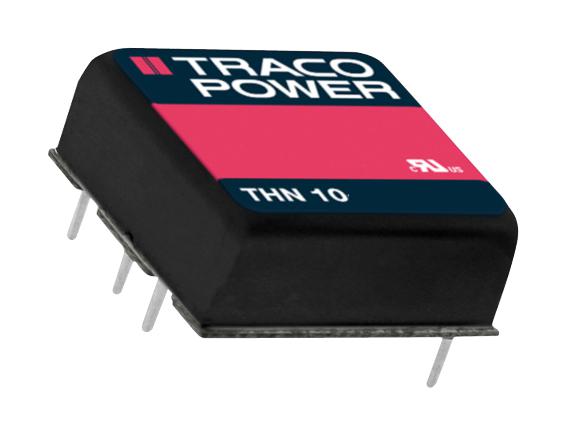

TRACO POWER THN107223WIR Industrial Power Converter
The THN 10WIR series consists of ruggedized 10 Watt DC/DC converters designed for harsh environments, including railway and transportation applications. These compact converters feature a 1” x 1” metal package with six-side shielding, wide input voltage range of 9-36, 18-75, or 36-160 VDC, high efficiency up to 90%, and an operating temperature range of -40°C to +80°C without derating. They are approved under EN 50155, EN 61373, and EN 45545-2 for fire safety. Built-in protections include overload, overvoltage, short circuit, and remote control functions. Suitable for demanding industrial and railway systems requiring reliable power conversion.
TRACO POWER THN107223WIR Industrial Power Converter Specifications:
- Input Voltage Range: 9-36 VDC, 18-75 VDC, 36-160 VDC, surge voltage up to 185 VDC (1s)
- Output Power: 10 Watts for various models
- Output Voltage Adjustment: +10% to -10% (3.3 & 12 V models), -10% to +20% (other models)
- Efficiency: Up to 90%
- Isolation Voltage: 3,000 VDC input to output
- Operating Temperature: -40°C to +80°C without derating
- Ripple and Noise: 75 mVp-p (typ.)
- Protection: Overload, overvoltage, short circuit, overtemperature
- Remote On/Off: Yes, voltage controlled
- Certifications: EN 50155, EN 61373, EN 45545-2, IEC 62368-1, UL 62368-1
- Dimensions: 25.4 x 25.4 x 11.5 mm (approx.)
- Material: Copper housing, epoxy potting, nickel-plated pins
- Vibration Resistance: MIL-STD-810F, EN 61373
- Safety Standards: UL, IEC, EN compliant
Buy the TracoPower THN 10WIR – Reliable Railway DC/DC Converter for Industrial Applications
Purchase the TracoPower THN 10WIR series online today for a robust 10 Watt DC/DC converter engineered for demanding industrial and railway applications. With wide input voltage ranges, efficiencies up to 90%, and certifications including EN 50155 and EN 61373, this converter ensures reliable power delivery even in harsh environments. Its compact size, high thermal stability from -40°C to +80°C, and built-in protections make it ideal for demanding systems requiring high reliability. Order now to benefit from quick delivery and seamless integration into your project.
Get TracoPower THN 10WIR today—built for precision, durability, and reliable power in harsh environments.
