TRACO POWER THN107213WIR railway power converter

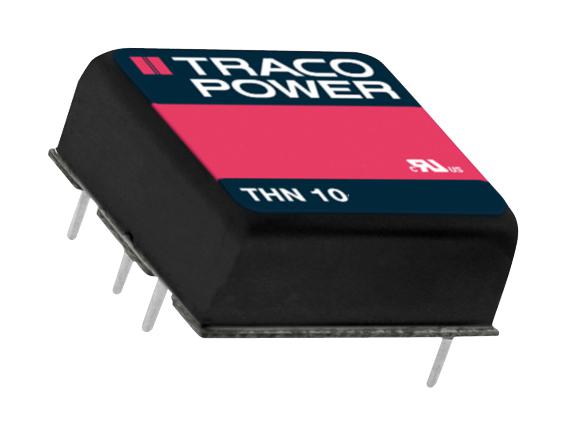

The THN 10WIR series consists of ruggedized 10 Watt DC/DC converters designed for high reliability in demanding environments like railway and transportation systems. Featuring a compact 1” x 1” metal package with shielded sides, these converters support a wide 4:1 input voltage range from 9V to 160V DC, operate efficiently up to 90%, and function temperature ranges from -40°C to +80°C without derating. They comply with standards EN 50155, EN 61373, and EN 45545-2 for fire behavior, making them suitable for railway applications. Built-in protections include overload, overvoltage, short circuit, and remote On/Off. They also offer high input I/O isolation of 3000 VDC, making them ideal for harsh and electromagnetic interference-rich environments, with certifications supporting rigorous safety and EMC standards.
TRACO POWER THN107213WIR railway power converter Specifications:
- Input Voltage Range: 9-36 VDC, 18-75 VDC, 36-160 VDC with 4:1 ratio
- Input Current at No Load: 6-10 mA depending on model
- Surge Voltage: Up to 185 VDC (110 V models)
- Input Under Voltage Lockout: 7.6 - 32 VDC min/max depending on model
- Output Voltage Adjustment: ±10% to +20% externally (single output)
- Output Power: 10 W (nominal)
- Output Voltage Accuracy: ±1%
- Efficiency: Up to 90%
- Isolation Voltage: 3000 VDC input to output
- Temperature Range: -40°C to +80°C without derating
- Protection: Overload, overvoltage, short circuit, remote On/Off
- Switching Frequency: 260–395 kHz depending on model
- Ingress Protection: Shielded metal package, MIL-STD-810F, EN 61373 vibration resistance
- Certifications: EN 50155, EN 61373, EN 45545-2, IEC 62368-1, UL 62368-1
- Housing Material: Copper, FR4 base, epoxy potting
Buy the Traco Power Series THN Series Railway Power Converter: THN107213WIR
Purchase the Traco Power THN 10WIR series online today and enjoy high efficiency, broad input voltage support, and rigorous safety standards. Designed for railway and harsh environment applications, these rugged 10 Watt DC/DC converters offer excellent reliability, insulation, and protection features, ensuring seamless operation in demanding conditions. With certifications like EN 50155, EN 61373, and EN 45545-2, they meet strict industry requirements. Get technological excellence, compact size, and robust protection—order now to streamline your industrial and transportation system integration with confidence.
Buy Traco Power THN 10WIR now and experience unmatched reliability and performance in demanding railway and industrial environments.
Frequently Asked Questions
Where can I buy TRACO POWER THN107213WIR?
You can click on the BUY or RFQ button to purchase THN107213WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THN107213WIR?
You can download the THN107213WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THN107213WIR?
TRACO POWER
