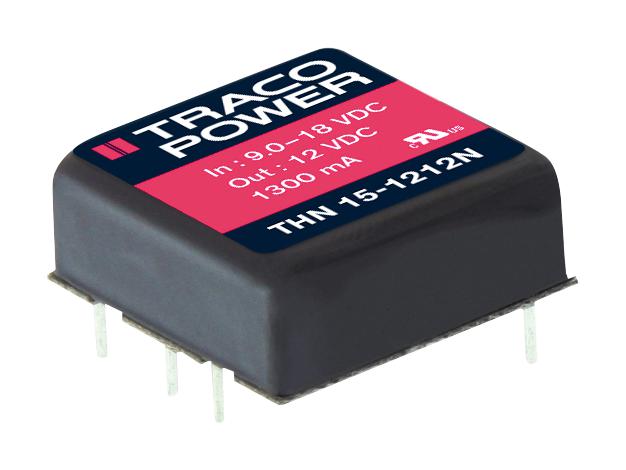

TRACO POWER THN151225N DC/DC Converter
The THN 15N series by Traco Power offers high-performance 15 Watt DC/DC converters in a compact 1” x 1” x 0.4” metal encapsulated package. These converters feature a wide 2:1 input voltage range, operating temperatures from -40°C to +70°C without derating, and efficiencies up to 91%. They have built-in EN 55032 Class A filters, overload, overvoltage, and short circuit protections, plus remote On/Off and trim functions. Ideal for space-constrained industrial and communication applications, they meet UL 62368-1 safety standards, ensuring reliable operation in demanding environments.
TRACO POWER THN151225N DC/DC Converter Specifications:
- Input voltage range: 9-75 VDC (wide 2:1 ratio)
- Output power: 15 Watt
- Efficiency: up to 91%
- Operating temperature: -40°C to +70°C without derating
- Isolation voltage: 1600 VDC (input to output)
- Built-in EN 55032 class A filter
- Protection: overload, overvoltage, short circuit
- Remote On/Off: On open or 3-15 VDC, Off short or 0-1.2 VDC
- Ripple and noise: 75 mVp-p (5 Vout models), 125 mVp-p (12 Vout models), 4100 mVp-p (5 Vout models with UL approval)
- Dimensions: 1” x 1” x 0.4” (25.4 x 25.4 x 10.16 mm)
- Case material: Copper, potting: UL 94-0 rated Silicone
- MTBF: 1,670,000 hours
- Compliance: IEC/EN/UL 62368-1, RoHS, Reach
Buy the Traco Power Series THN 15N DC/DC Converter: THN151225N
Secure your power management needs with the Traco Power THN 15N converter. This 15 Watt device offers up to 91% efficiency, wide input voltage range, and comprehensive protections. Its compact size and high reliability make it ideal for space-critical industrial, communication, and instrumentation applications. With UL 62368-1 certification and built-in filters, it ensures quality and safety. Purchase online today to benefit from fast delivery and trusted performance for your demanding electronic projects.
Buy Traco Power THN 15N now and experience unmatched reliability and high efficiency perfect for industrial and communication systems.
Frequently Asked Questions
Where can I buy TRACO POWER THN151225N?
You can click on the BUY or RFQ button to purchase THN151225N from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THN151225N?
You can download the THN151225N datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THN151225N?
TRACO POWER
