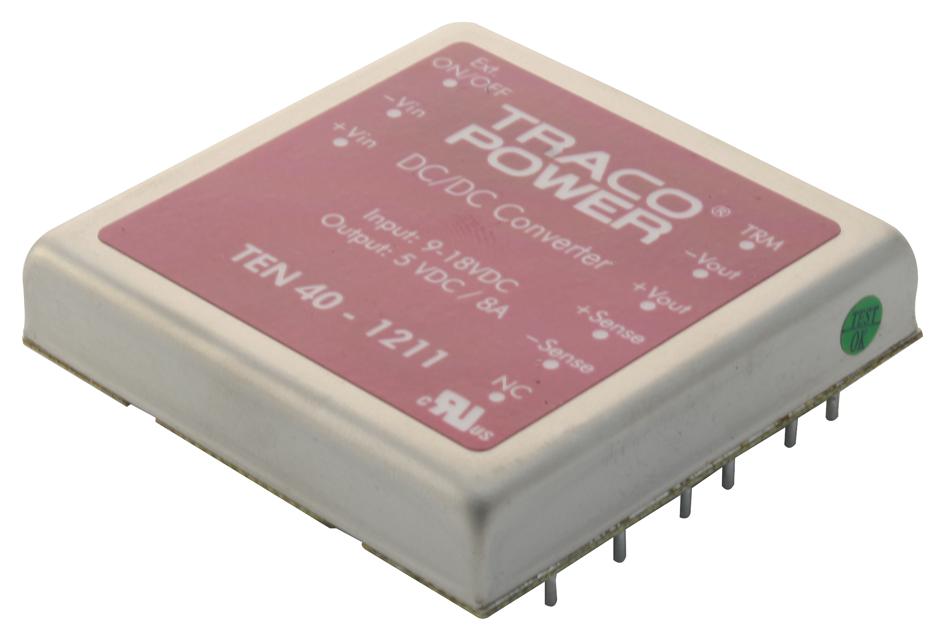

TRACO POWER TEN401211 DC/DC Converter
The Power Ten 40 series is a family of high-performance 40W DC/DC converter modules designed with high power density in a compact 51x51x10mm case. Features include a wide 2:1 input voltage range, multiple output options with independent regulation, and extended operating temperature from -40°C to +75°C. Equipped with built-in filters, remote On/Off, voltage trimming, over-voltage, and short-circuit protection, these RoHS compliant, lead-free converters are ideal for space-constrained industrial and communication equipment that require tightly regulated voltages.
TRACO POWER TEN401211 DC/DC Converter Specifications:
- Power: 40 W
- Input Voltage Range: 9 V to 75 V
- Outputs: Single, dual, or triple; voltages include 3.3V, 5V, 12V, 15V, 18V, 24V, 36V, 48V
- Output Power: Up to 8A per channel
- Efficiency: Up to 90%
- Operating Temperature: -40°C to +75°C
- Isolation Voltage: 1500 VDC
- Protections: Over-voltage, over-current, over-temperature, short-circuit
- Switching Frequency: 300 kHz
- Dimensions: 51x51x10 mm
- Weight: 65 g
- Compliance: RoHS 2011/65/EU, UL 60950, EN 60950
- Remote On/Off control: 3.5 to 12 VDC or open circuit
- Isolation Resistance: >1000 M Ohm
- Soldering Temperature: Max 265°C / 10 sec
Buy the Buy TracoPower DC/DC Converter Part Number TEN401211 Online
Purchase the TracoPower DC/DC converter TEN401211 online to benefit from high efficiency, wide input voltage range, multiple output options, and a compact design. Perfect for industrial and communication equipment needing space-saving, reliable power modules with full protections including over-voltage, over-current, and thermal shutdown. Easily integrate into various power architectures with remote On/Off control, excellent thermal performance, and compliance with RoHS and safety standards. Ensure your application operates smoothly with this rugged, efficient power solution.
Buy TracoPower TEN401211 now and experience unmatched reliability and performance in high-density power conversion for industrial applications.
Frequently Asked Questions
Where can I buy TRACO POWER TEN401211?
You can click on the BUY or RFQ button to purchase TEN401211 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN401211?
You can download the TEN401211 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN401211?
TRACO POWER
