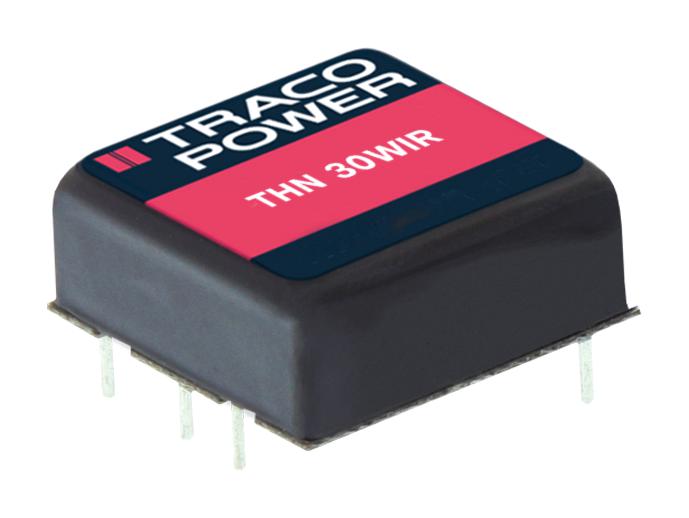

TRACO POWER THN302423WIR DC/DC Converter
The THN 30WIR series consists of DC/DC converters designed for high reliability in harsh environments. With a power output of 30 Watts, these converters are EN 50155 railway certified and feature a wide input voltage range. They are fully shielded with a metal enclosure on all six sides, providing excellent electromagnetic interference immunity. Their complete encapsulation offers superior resistance to thermal shocks, mechanical shocks, and vibrations. With a high efficiency of up to 91%, they can operate in ambient temperatures from -40°C to +65°C without derating or additional cooling, depending on the model. Certified according to EN 61373 for shock and vibration and EN 45545-2 for fire safety, they also carry IEC/EN/UL 62368-1 safety approvals. Additional features include a wide 4:1 input voltage range, up to 3000 VDC I/O isolation, remote on/off and trim functions, and protections against undervoltage, short-circuit, overvoltage, and overtemperature. They come with a 3-year warranty.
TRACO POWER THN302423WIR DC/DC Converter Specifications:
- Output Power: 30 Watts
- Input Voltage Range: 9-36 VDC, 18-75 VDC, 36-160 VDC, Wide 4:1 Range
- Efficiency: Up to 91%
- Input Current at No Load: 10 mA (24V), 10 mA (48V), 15 mA (110V)
- Input Surge Voltage: 50 VDC max. (24V), 100 VDC max. (48V), 185 VDC max. (110V)
- Input Filter: Internal Pi-Type
- Output Voltage Adjustment: +10% to +20% (15 V models), 10% other models
- Output Voltage Accuracy: ±1%
- Overvoltage Protection: 3.7V to 32.5V max. depending on model
- Short-Circuit Protection: Continuous, automatic recovery
- Isolation Voltage: Up to 3000 VDC input to output
- Operating Temperature: -40°C to +65°C without derating
- Operating Humidity: 95%
- Vibration Resistance: EN 61373, MIL-STD-810F standards
- Shock Resistance: 50g, 11ms, MIL-STD-810F
- Safety Standards: EN 50155, IEC 62368-1, UL 62368-1
- Fire Certification: EN 45545-2
- Mechanical Dimensions: Encapsulated in 1”x1” metal package
Buy the Traco Power THN 30WIR – Reliable DC/DC for Industrial Applications
Discover the high-performance Traco Power DC/DC Converter in the THN 30WIR series. Featuring a rugged metal enclosure, wide input voltage range, and efficiency up to 91%, it is ideal for critical industrial and railway applications. Certified for EN 50155, shock, vibration, and fire safety standards, this converter ensures durability and safety. With protections like UVLO, SCP, OVP, OTP, remote control, and a 3-year warranty, it guarantees reliable power conversion in extreme conditions. Perfect for demanding environments requiring robust, reliable power solutions.
Buy Traco Power THN 30WIR now and experience unmatched reliability and performance in demanding environments.
Frequently Asked Questions
Where can I buy TRACO POWER THN302423WIR?
You can click on the BUY or RFQ button to purchase THN302423WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THN302423WIR?
You can download the THN302423WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THN302423WIR?
TRACO POWER
