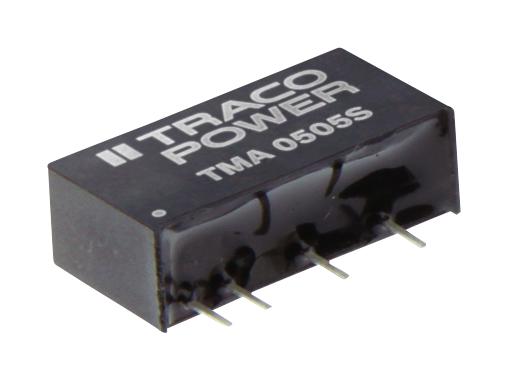

TRACO POWER TMA1505D DC/DC Converter
The TMA series are miniature, efficient 1 W isolated DC/DC converters in a single-in-line package, requiring only 1.2 cm² board space. Designed for space-critical applications, they feature industry-standard pinouts, operate from -40°C to +85°C, and offer up to 81% efficiency. With unregulated outputs, 1000 VDC isolation, and ROHS compliance, these high-performance modules are ideal for various power distribution needs in industrial and electronic systems. Suitable for demanding environments, they come with a 3-year warranty, making them a reliable choice for engineers.
TRACO POWER TMA1505D DC/DC Converter Specifications:
- Power: 1 W
- Input Voltage Range: 5 VDC to 24 VDC
- Output Voltage Options: 5 VDC, 12 VDC, 15 VDC
- Output Current Max: 200 mA
- Efficiency: Up to 81%
- Isolation Voltage: 1000 VDC
- Operating Temperature Range: -40°C to +85°C
- Case Material: Non conductive black plastic (UL 94V-0 rated)
- Dimensions: 19.5 mm x 6.35 mm x 13 mm
- Soldering Temperature: Max 260°C / 10 s
- Mounting: SMD technology
- RoHS Compliant: Yes
- Input Ripple: 50 mVp-p typical
- Frequency Range: 70 to 120 kHz
- MTBF: >2,000,000 hours
- Protection: Limited short circuit for max 0.5 s
Buy the Traco Power Series TMA DC/DC Converter: TMA1505D
Enhance your electronic system with the compact and highly efficient DC/DC converter from the TMA series. With 1000 VDC isolation, operating from -40°C to +85°C, it’s perfect for space-critical applications. The unregulated power module offers up to 81% efficiency, ensuring minimal energy loss. Its industry-standard pinout and ROHS compliance simplify integration into your designs. Durable and reliable, this 1 W converter with a 3-year warranty is ideal for industrial, automation, and control projects. Purchase online today for dependable power delivery.
Order your Traco Power Series TMA1505D today and ensure reliable power conversion for your critical electronic projects with high efficiency performance.
Frequently Asked Questions
Where can I buy TRACO POWER TMA1505D?
You can click on the BUY or RFQ button to purchase TMA1505D from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMA1505D?
You can download the TMA1505D datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMA1505D?
TRACO POWER
