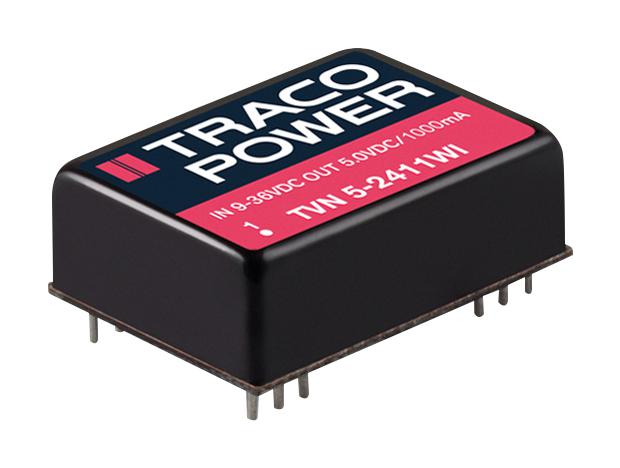

TRACO POWER TVN50915WI DC/DC Converter
The TVN 5WI series is a compact 5 Watt DC/DC converter providing ultra low ripple and noise with a 10 mVp-p typical output. Its six-sided shielded metal package ensures excellent EMI performance, meeting EN 55032 class B standards. The converter supports an ultra-wide input voltage range of 4.5-75 VDC, with features including remote On/Off, overvoltage, undervoltage lockout, and short circuit protection. Designed for reliable operation at temperatures from -40°C to +90°C, this series is ideal for audio, measurement, and detection circuits, backed by a 3-year warranty.
TRACO POWER TVN50915WI DC/DC Converter Specifications:
- Input Voltage: 4.5-75 VDC, surge up to 100 V max.
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 24V with adjustable versions.
- Output Current: Up to 500 mA depending on model.
- Efficiency: Max 89%.
- Ripple and Noise: 10 mVp-p typ. without external components.
- Isolation Voltage: 1600 VDC.
- Operating Temperature: -40°C to +90°C.
- Dimensions: Approx. 20 mm x 15 mm x 10 mm, case material copper, weight approx. 15.39 g.
- Protection: Short circuit, overvoltage, undervoltage lockout, and remote On/Off.
- Switching Frequency: 300 kHz typ.
- Humidity: 5–95% RH non-condensing.
- Certifications: EN 55032 class B, IEC/EN 60950-1.
- Reliability: MTBF > 4,400,000 hours.
Buy the Buy Traco Power TVN 5WI Series Part Number 15WI Online
Procure the Traco Power TVN 5WI Series 5 Watt DC/DC converter online today to ensure your electronic projects benefit from ultra low ripple, wide input voltage range, and advanced protection features. This reliable, compact converter supports temperatures up to 90°C, has a 3-year warranty, and is perfect for audio, measurement, and detection circuits demanding high performance and EMI compliance. Easy to install and backed by trusted quality, purchase now to enhance your application’s power stability and safety.
Buy Traco Power TVN 5WI Series 5 Watt DC/DC Converter now and experience unmatched reliability and performance for your audio and measurement circuits.
Frequently Asked Questions
Where can I buy TRACO POWER TVN50915WI?
You can click on the BUY or RFQ button to purchase TVN50915WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TVN50915WI?
You can download the TVN50915WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TVN50915WI?
TRACO POWER
