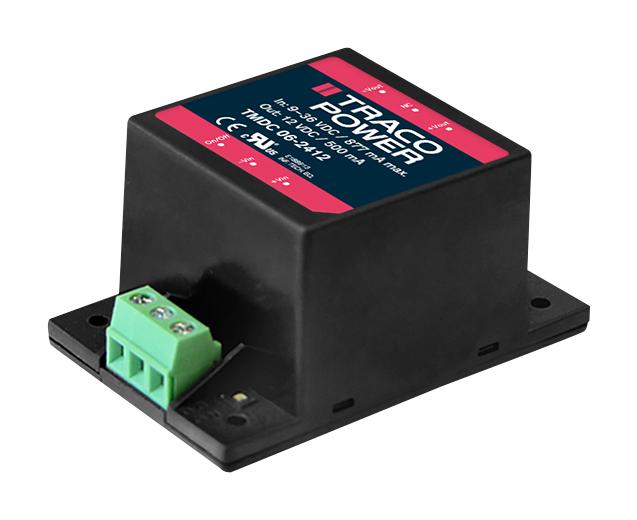

TRACO POWER TMDC064811 Industrial DC/DC Converter
The TMDC 06 series is a 6-watt industrial DC/DC converter designed for harsh environments with an ultra-wide input range of 9-36 VDC or 18-75 VDC. Encapsulated in a compact plastic package measuring 2.09
TRACO POWER TMDC064811 Industrial DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC or 18-75 VDC
- Output Power: 6 Watts
- Output Voltage Options: 5.1 V, 12 V, 15 V, 24 V, -12 V, -15 V, -24 V
- Maximum Output Current: 250 mA (most models)
- Efficiency: up to 85%
- Isolation Voltage: 3000 VDC
- Operating Temperature: -40°C to +80°C without derating
- Regulation Accuracy: 2%
- Ripple and Noise: 75-180 mVp-p depending on output voltage
- Input Surge Voltage: 50-100 VDC
- Input No-Load Current: 8-10 mA
- Start-up Time: 30 ms
- Short Circuit Protection: Automatic recovery
- EMC Standards: EN 55032, EN 55035
- Dimensions: 2.09
- 1.34
- 1.04
- Housing Material: UL 94V-0 plastic
- Connection Type: Screw terminals
- Weight: 499 g
- Switching Frequency: 370 kHz
- Remote Control: Voltage controlled remote on/off
- Safety Certifications: UL 62368-1, IEC 62368-1
- Environmental: RoHS, Reach compliant
Buy the Traco Power TMDC 06 – Reliable Industrial DC/DC Converter for Harsh Environments
Get the reliable Traco Power TMDC 06 series 6-watt industrial DC/DC converter online today for your harsh environment projects. Featuring ultra-wide input ranges, high EMC immunity, safety certifications, and compact encapsulated design, this module ensures dependable power supply for industrial automation, control systems, and demanding applications. Equipped with integrated filters for emission and immunity compliance (EN 55032, EN 55035), overload, undervoltage, and short circuit protections, plus 3,000 VDC isolation, it delivers consistent performance across temperature ranges from -40°C to +80°C without derating. Buy now for guaranteed quality and peace of mind.
Order your Traco Power TMDC 06 series 6 Watt industrial DC/DC converter today and ensure reliable power conversion for harsh industrial applications.
Frequently Asked Questions
Where can I buy TRACO POWER TMDC064811?
You can click on the BUY or RFQ button to purchase TMDC064811 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMDC064811?
You can download the TMDC064811 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMDC064811?
TRACO POWER
