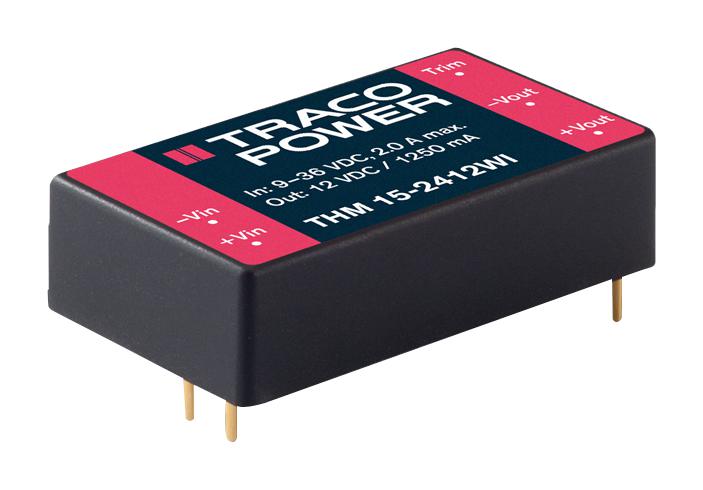

TRACO POWER THM154812WI Medical Power Converter
This component is designed for medical applications, providing reliable performance in healthcare devices and instrumentation. It is a 15 Watt DC/DC converter with a compact 1.6 x 1” plastic case, offering wide 4:1 input voltage range, reinforced 5000 VACrms isolation, and low leakage current of less than 2.5 pA. It complies with IEC 60601-1 3rd edition for 2xMOPP, features high efficiency up to 90%, operate reliably from -40°C to +85°C, and is suitable for demanding medical and industrial environments including transportation and control systems, ensuring safety and stable power supply.
TRACO POWER THM154812WI Medical Power Converter Specifications:
- Power: 15 Watts
- Input Voltage Range: 9V to 36VDC
- Output Voltage: 12VDC
- Output Current: 1250 mA
- Efficiency: 88.5%
- Isolation Voltage: 5000 VACrms
- Leakage Current: < 2.5 pA
- Operating Temperature Range: -40°C to +85°C
- Dimensions: 1.6 x 1 inches
- Case Material: Non-conductive plastic
- Potting Material: Silicone
- Certifications: IEC 60601-1, IEC/EN/ES 60601-1, ISO 13485, IEC 60601-1-2
- Protection features: Overvoltage, short circuit, overcurrent
- MTBF: 2,080,000 hours
- Vibration & Shock Resistance: MIL-STD-810F
- Soldering Temperature: Max 265°C for 10 sec
- Humidity: 5% to 95% RH
Buy the Buy Traco Power DC/DC Converter Part Number THM154812WI Online
Secure your medical or industrial projects with the reliable Traco Power THM 15WI Series 15 Watt DC/DC converter. Compact and efficient, it features reinforced 5000 VACrms isolation, operates reliably from -40°C to +85°C, and boasts high efficiency up to 90%. Designed for demanding environments, it provides low leakage current of less than 2.5 pA, comprehensive safety certifications, and durable silicone potting. Perfect for medical equipment, transportation, and control systems, order online for quick delivery and trusted performance.
Order your Traco Power Series THM 15WI converter today and ensure your healthcare devices and industrial systems operate with dependable, efficient power.
