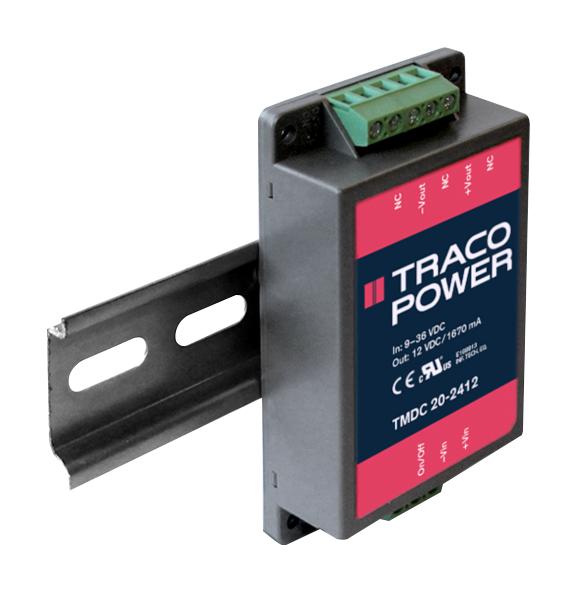

TRACO POWER TMDC202411 Industrial Power Converter
The TMDC 20 Series are encapsulated 20-watt DC/DC converters designed for reliable industrial applications. Featuring high efficiency up to 91%, wide 4:1 input voltage range, and operation from -40°C to 90°C, these converters provide stable output voltages with tight regulation. They include features like remote On/Off, protection against overload and short circuits, power good LED, and optional DIN-Rail mounting. Suitable for rugged environments, they meet stringent EMI, safety standards, and have an integrated case, making them ideal for automation, control, and power supply tasks.
TRACO POWER TMDC202411 Industrial Power Converter Specifications:
- Input Voltage Range: 5.1 VDC to 48 VDC
- Output Voltage Options: 5.1 VDC, 12 VDC, 24 VDC, 48 VDC
- Output Current Max: 4000 mA (for 5.1 V, 24 V outputs), 420 mA (for 48 V outputs)
- Efficiency: up to 91%
- Operating Temperature: -40°C to +90°C with derating above 85°C
- Isolation Voltage: 2500 VDC input/output
- EMC Compliance: EN 55032 class A, FCC Part 15 class A
- Protection: Overload, short circuit, overvoltage
- Remote On/Off: Yes, 3.5 to 12 VDC on, 0 to +1.2 VDC off
- MTBF: >775,200 hours
- Dimensions: 96 mm x 23.5 mm x 15 mm
- Weight: 107 g
- Casing Material: UL 94-V0 rated plastic
- Switching Frequency: ~285 kHz
- Certifications: UL, cUL, IEC 60950-1, EN 60950-1
- Environmental: RoHS, Reach compliant
- Derating: 10% per K above 85°C
- Storage Temperature: -55°C to +125°C
Buy the Buy Traco Power TMDC 20 Series Part Number TMDC202411 Online
Order the Traco Power TMDC 20 Series high-performance 20-watt DC/DC converter online today. Perfect for industrial automation, control systems, and rugged environments. Featuring high efficiency up to 91%, wide input voltage range, and compact encapsulated design, these converters ensure reliable operation in harsh conditions. With built-in overload and short circuit protection, remote On/Off, and compliance with safety standards, they deliver stable and efficient power. Easy to install with optional DIN-Rail mounting, making your systems safer, more reliable, and easier to maintain.
Buy Traco Power TMDC202411 now and experience reliable high efficiency and rugged design for industrial power supply needs.
