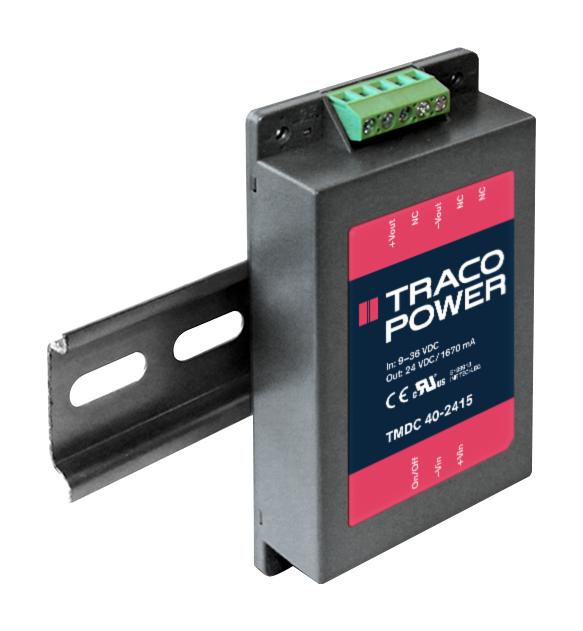

TRACO POWER TMDC402418 DC/DC Converter Module
The TMDC 40 Series comprises high-performance 40W DC/DC converters with up to 92% efficiency, fully encapsulated in a compact plastic case. These modules feature a wide 4:1 input voltage range, low temperature operation from -40°C to +85°C, and optional DIN-Rail mounting. They offer excellent regulation, no minimum load requirement, remote On/Off, and a power good LED indicator. Standard protection includes overload and short circuit. Suitable for industrial environments, these converters ensure reliable power conversion with robust EMC and safety certifications.
TRACO POWER TMDC402418 DC/DC Converter Module Specifications:
- Input Voltage Range: 5.1 VDC to 48 VDC with 4:1 wide input voltage range
- Output Voltage: 5.1 VDC or 48 VDC; Output Current: up to 8A or 835mA respectively
- Efficiency: Up to 92%
- Operating Temperature: -40°C to +85°C with derating above 73°C
- Isolation Voltage: 2500 VDC (Input/Output)
- Ripple and Noise: 100-200 mVpk-pk depending on model
- Overvoltage Protection: 120% of Vout
- Short Circuit Protection: Automatic hiccup mode
- Dimensions: Approx. 83 x 92 x 25 mm (L x W x H), weight 162 g
- Additional features: Remote On/Off, Power good LED, IEC/UL/CSA safety standards, EMI compliant
Buy the Trac Power Series TMDC 40 Power Supply: TMDC402418
Purchase the Trac Power Series TMDC402418 high-performance 40W DC/DC converter online today. This compact, fully encapsulated module offers up to 92% efficiency, a wide input voltage range, and robust protection suitable for industrial environments. With features like remote On/Off, Power good LED, and high noise immunity, it guarantees reliable power conversion. Perfect for demanding applications requiring stable voltage regulation, safety compliance, and easy mounting options. Get yours now and enhance your project's power efficiency and reliability.
Order your Trac Power Series TMDC402418 high-efficiency DC/DC converter today and ensure reliable power for industrial applications with excellent regulation and safety features.
Frequently Asked Questions
Where can I buy TRACO POWER TMDC402418?
You can click on the BUY or RFQ button to purchase TMDC402418 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMDC402418?
You can download the TMDC402418 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMDC402418?
TRACO POWER
