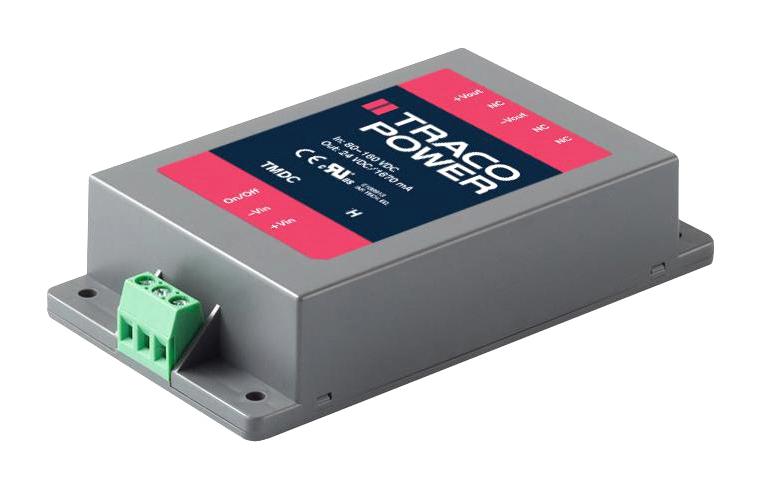

TRACO POWER TMDC607213H Industrial DC/DC Module
The TMDC 60H series by Traco Power offers fully encapsulated 60-watt industrial DC/DC modules designed for harsh environments. Featuring a high input voltage range of 80-160 VDC, reinforced 3000 VAC isolation, and full regulation with excellent EMC immunity (EN 55032, EN 55035), these compact modules suit various industrial and battery applications. They operate reliably from -40°C to +75°C without derating, include safety certifications (UL 62368-1), and provide features like DC-OK and Remote On/Off. Built with high-quality materials, they ensure durability and safety in demanding industrial settings.
TRACO POWER TMDC607213H Industrial DC/DC Module Specifications:
- Input Voltage Range: 80-160 VDC
- Output Power: 60 W
- Output Voltage Options: 5.1 V, 12 V, 15 V, 24 V, 48 V, ±12 V, ±15 V, ±24 V
- Input Current at Full Load: 620 mA
- Isolation Voltage: 3000 VAC
- Operating Temperature Range: -40°C to +75°C without derating
- Efficiency: Up to 89%
- Short Circuit Protection: Automatic recovery
- Overvoltage Protection: 120-125% of output voltage
- Start-up Time: 30-60 ms
- Certification: UL 62368-1, IEC 62368-1
- Housing Material: Plastic UL 94 V-O rated
- Connections: Screw terminals
- Dimensions: Compact, with detailed size specifications
- Cooling Method: Natural convection
Buy the Buy Traco Power DC/DC Converter Part Number TMDC607213H Online
Order the Traco Power TMDC 60H series DC/DC module online today to experience high efficiency, reinforced isolation, and robust performance in harsh industrial environments. These 60-watt modules support a wide input voltage range of 80-160 VDC, providing safe and reliable power conversion for demanding applications. Featuring full regulation, low ripple, and EMC immunity, they are ideal for industrial automation, battery systems, and control systems. Enjoy quick delivery and trusted quality—power your project with Traco Power's durable and certified power modules.
Get Traco Power TMDC 60H series DC/DC module today—reliable, fully encapsulated, and designed for demanding industrial applications.
