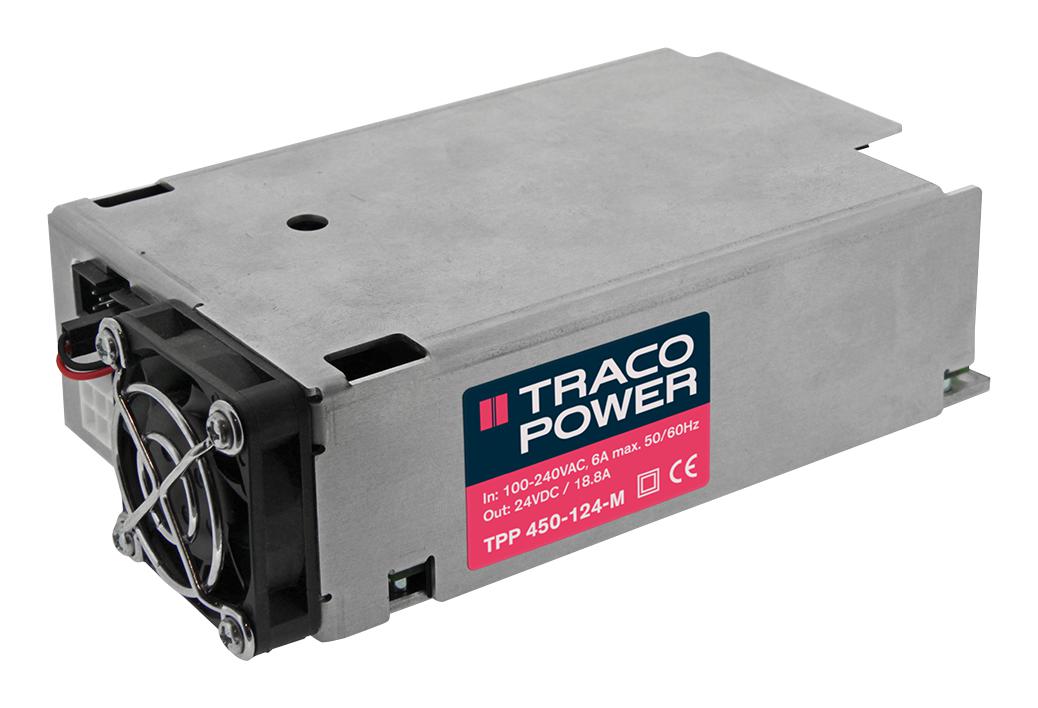

TRACO POWER TPP450136M Medical Power Supply
The TPP 450 Series is a 450 Watt medical power supply designed for demanding healthcare applications. With a compact 3" x 5" form factor, it offers high efficiency up to 94%, fanless operation at 320W up to 50°C, and 450W with a fan at 65°C. It features reinforced double 1/0 isolation, low leakage current (< 100 pA), and medical certifications (IEC/EN/ES 60601-1 3rd edition, 2x MOPP). Its robust thermal management, high reliability, and EMC compliance make it ideal for medical devices needing space-saving, noise-free power solutions. Certified for BF environments, it ensures safety, durability, and consistent performance in critical healthcare settings.
TRACO POWER TPP450136M Medical Power Supply Specifications:
- Output Power: 450 Watt
- Output Voltage: 12 VDC, 15 VDC, 24 VDC, 36 VDC, 48 VDC options
- Output Current: Up to 375A (12 V), 30A (15 V), 18.75 A (24 V), 12.54 A (36 V), 94 A (48 V)
- Input Voltage Range: 85–264 VAC, 120–370 VDC
- Frequency: 47–63 Hz
- Efficiency: Up to 94%
- Isolation Voltage: 4000 VAC input to output, 2500 VAC input/output to ground
- Leakage Current: < 100 pA at 264 VAC
- Operating Temperature: -40°C to +80°C
- Cooling: Fanless up to 50°C at 320W, with fan for 450W at 65°C
- Protection: Overvoltage (110–135%), Overload (115–150%), Short circuit (automatic recovery)
- Dimensions: 3" x 5" x 1.4" (76.2 x 127 x 35.6 mm)
- Certificates: IEC/EN/ES 60601-1, UL 62368-1, EN 55032 B
- Altitude: Up to 5000 m
- Safety: BF rated, Isolation (4000 VAC), Leakage current (< 100 pA)
Buy the TracoPower TPP450136M – Reliable Medical Power Supply for Healthcare Devices
Purchase the TracoPower TPP 450 Series power supply online today and benefit from its high efficiency, space-saving design, and safety certifications essential for medical applications. With an industrial-grade build, low leakage current, and certification to IEC/EN/ES 60601-1 standards, it guarantees reliable operation in critical healthcare environments. Its robust thermal management and optional fan cooling provide flexible deployment options. Get yours now and enhance the safety, durability, and performance of your medical devices through our secure online ordering process that guarantees fast delivery and quality assurance.
Order your TracoPower Series TPP 450 136M medical power supply today and ensure your healthcare equipment runs reliably with space-saving efficiency.
