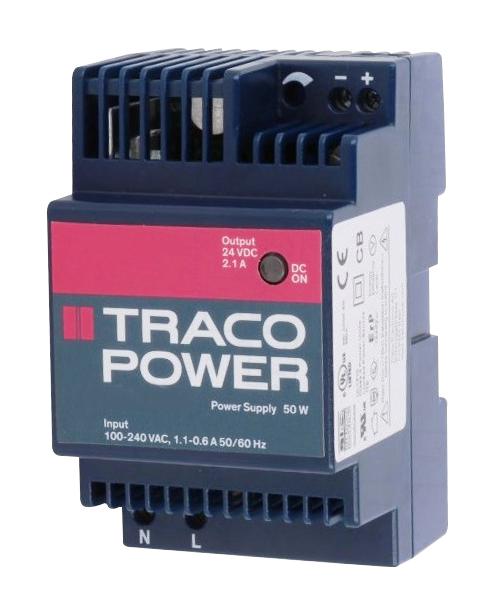

TRACO POWER TBLC50112 Power Supply Module
The TBLC series from Traco Power offers compact, high-efficiency DIN-rail power supplies ranging from 6 to 90 W, suitable for industrial and residential applications. Designed for reliable operation within an operating temperature of -25°C to +70°C, these modules feature universal input voltage 85 to 264 VAC, adjustable output voltages, short circuit, and overload protection. They conform to safety standards including UL 1310 class II, NEC class 2, and IEC/EN 60950-1, with low noise, high power density, and efficient energy use perfect for distributed power systems and household appliances.
TRACO POWER TBLC50112 Power Supply Module Specifications:
- Input voltage: 85-264 VAC, 50/60Hz; Derating below 100 VAC by 2% per Volt
- Output power: 6W to 90W; Voltage adjustable within specified ranges; Max output voltage 5.5V to 28V
- Efficiency: up to 89%; Low standby power < 0.5W; Power density high for compact design
- Operating temperature: -25°C to +70°C; Storage: -40°C to +85°C; Derating above +55°C at 2.5%/K
- Protection: Short circuit, overload, overvoltage; DC-OK indicator LED; Class II safety design, IEC/EN 60950-1 compliance
- Dimensions: Varying widths 18mm to 90mm, depth 55mm, height approximately 25-30mm; DIN-rail mounting
Buy the Traco Power Series TBLC 6-90W Power Supply: TBLC50112
Upgrade your setup with the Traco Power Series TBLC 90W power supply, designed for high efficiency and reliable operation. Perfectly suited for industrial and household applications, these compact modules feature universal input voltage 85 to 264 VAC, adjustable output voltage, and full safety and EMC compliance. Their DIN-rail mountable design saves space and simplifies installation. With protections including short circuit and overload, they ensure your systems stay operational. Purchase online today to enjoy dependable power solutions that meet modern energy standards and reduce energy costs.
Order your Traco Power Series TBLC 90W power supply today and ensure reliable, efficient power for your industrial or residential applications.
Frequently Asked Questions
Where can I buy TRACO POWER TBLC50112?
You can click on the BUY or RFQ button to purchase TBLC50112 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TBLC50112?
You can download the TBLC50112 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TBLC50112?
TRACO POWER
