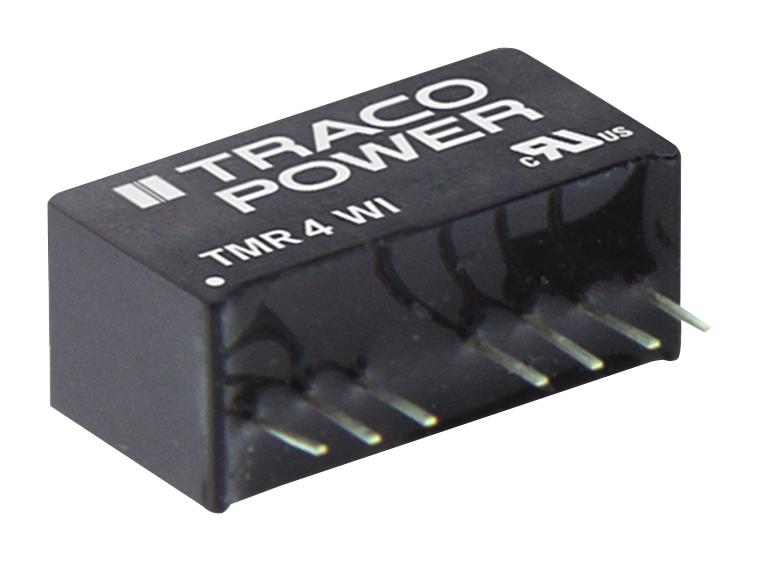

TRACO POWER TMR42422WI DC/DC Converter
The TMR 4WI Series is a compact 4 Watt DC/DC converter offering a wide 4:1 input voltage range and full regulation for reliable power supply in industrial applications. It features an SIP-8 package, high efficiency up to 83%, and a galvanic isolation of 1600 VDC. Designed for demanding environments, it operates from -40°C to +70°C without derating and includes protection against short circuits and overloads. Certified according to IEC/EN/UL 62368-1, this series ensures safety, environmental compliance, and remote On/Off control for flexible integration. Its robust design makes it ideal for space-constrained, cost-effective industrial and multimedia power solutions.
TRACO POWER TMR42422WI DC/DC Converter Specifications:
- Input Voltage Range: 4:1 wide range (5VDC to 36VDC, 9VDC to 36VDC, 12VDC to 48VDC, 18-75VDC, 24VDC, 48VDC, 5VDC, 12VDC, 15VDC, -12VDC, -15VDC)
- Output Power: 4 Watts
- Efficiency: Up to 83%
- Isolation Voltage: 1600 VDC
- Operating Temperature Range: -40°C to +70°C without derating
- Ambient Temperature Range: -40°C to +85°C, Case temperature up to +100°C
- Protection: Short-circuit, overload, automatic recovery
- Remote On/Off Control: Yes (<0.6 VDC to turn on)
- Input Surge Voltage: 50 VDC (24V models), 100 VDC (48V models, 1 s)
- Ripple & Noise: 80 mVp-p (20 MHz bandwidth)
- Power Derating: 3.33%/K above 70°C
- Dimensions: SIP-8 package, weight approx. 48g
- Certification: UL 62368-1, IEC 62368-1, EN 62368-1
- Electrical Isolation: Input to output 1600 VDC, resistance >17 MΩ, capacitance ~200 pF
- Materials: Tinned copper pins, non-conductive plastic housing (V-0 rated)
Buy the Traco Power Series TMR 4WI DC/DC Converter: TMR42422WI
Order the Traco Power TMR 4WI Series DC/DC Converter online today to enjoy a highly efficient, compact power solution with galvanic isolation up to 1600 VDC. Ideal for industrial applications, this 4 Watt converter offers a wide input voltage range from 5V to 75V, operates seamlessly from -40°C to +70°C without derating, and features short-circuit and overload protection. Certified according to IEC/EN/UL 62368-1, it provides a reliable, space-saving power management solution for demanding environments. Purchase now for fast delivery and enhanced application stability.
Get Traco Power TMR42422WI today—built for compact size, high efficiency, and reliable industrial power conversion.
